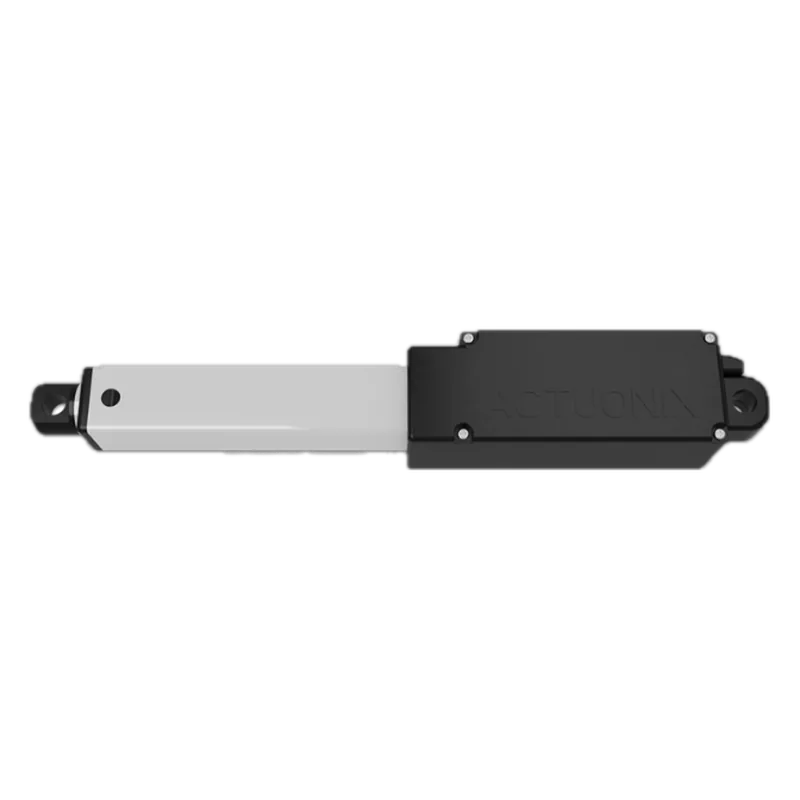

Actuonix L16-P Miniature Linear Actuator, 50 mm, 63:1, 12 V
Actuonix · MPN L16-50-63-12-P · Maglev ID ac-actuonix-l16-50-63-12-p
CA Maker in Canada, factory not confirmed unknown VERIFIED
Miniature lead-screw actuator with potentiometer feedback; small grippers, animatronics and adjustable mechanisms.
Specifications
| Stroke | 50 mm |
|---|---|
| Max load | 100 N (peak efficiency 38 N; backdrive 46 N) |
| No-load speed | 20 mm/s |
| Voltage | 12 VDC |
| Feedback | Potentiometer (-P) |
| Mass | 56 g |
Who makes it
MakerActuonix Motion Devices Inc.
Based inCanada
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
41.5%
TW
10%
VN
16.5%
IN
14%
JP
12.5%
KR
12.5%
DE
10%
MX
14%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8501.31.40.00 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Equivalents from other makers
Sources
- https://www.actuonix.com/l16-50-63-12-pspecs + tiered price + stock + datasheet/STEP
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
