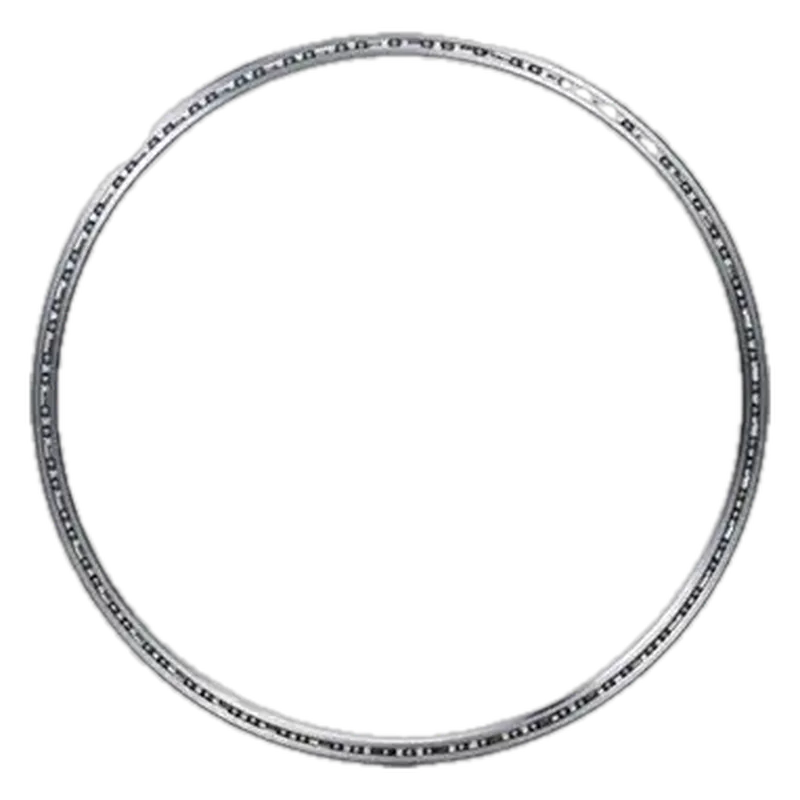

CHG HJA020X Type X Thin-Section Bearing
CHG · MPN HJA020X · Maglev ID ac-chg-hja020x
CN Maker in China, factory not confirmed unknown VERIFIED
Luoyang Huigong (CHG) four-point contact thin-section bearing, 50.8 mm bore, inch-series sizes interchangeable with Kaydon JA-series.
Specifications
| Bore | 50.8 mm |
|---|---|
| Outside diameter | 63.5 mm |
| Width | unknown |
| Type | Four-point contact (Type X), JA-series 1/4 in section |
| Material | unknown |
| Radial dynamic load | 1420 N |
Who makes it
MakerLuoyang Huigong Bearing Technology Co., Ltd.
Based inChina
RoleFactory
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
46.5%+?
TW
10%+?
VN
21.5%+?
IN
19%+?
JP
12.5%+?
KR
12.5%+?
DE
10%+?
MX
19%+?
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8482.10.50 |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Equivalents from other makers
Sources
- https://luoyanghuigong.aixdb.cn/thin-section-bearings/type-x-thin-section-bearingmodel table: bore, OD, load ratings; width not given in table
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
