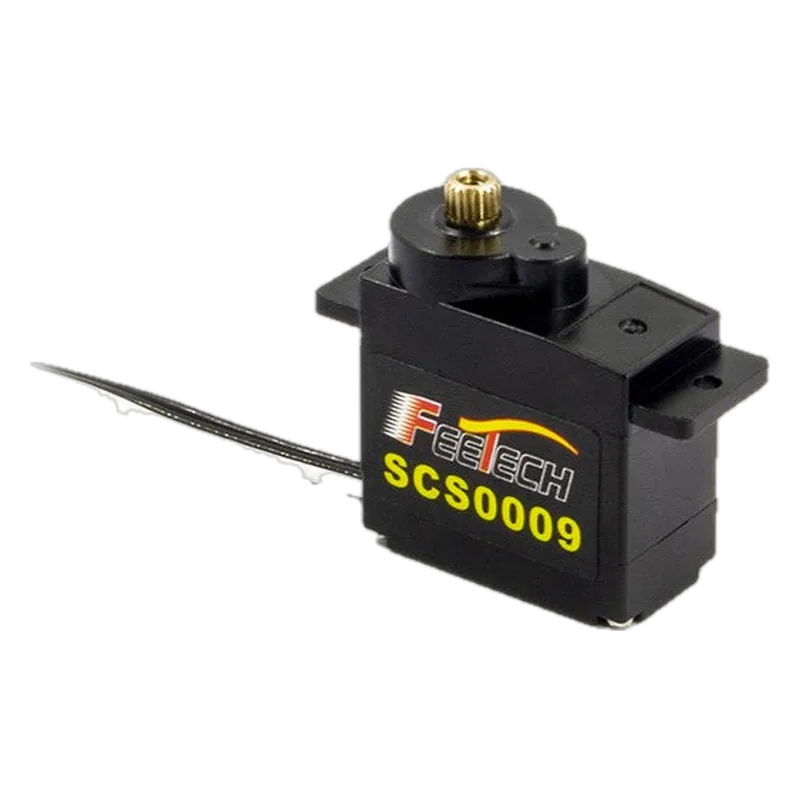

Feetech SCS0009 Micro Serial Bus Servo
Feetech · MPN SCS0009 · Maglev ID ac-feetech-scs0009
CN Maker in China, factory not confirmed unknown VERIFIED
13 g, 2.3 kg·cm metal-gear TTL bus servo; used in small dexterous hands and companion robots.
Specifications
| Stall torque | 2.3 kg·cm peak @ 6 V (rated 0.7 kg·cm) |
|---|---|
| No-load speed | unknown |
| Voltage | 4-7.4 V |
| Interface | TTL serial bus, 38.4 kbps-1 Mbps |
| Feedback | Potentiometer 300°/1024 (Switch Science); one Seeed listing says 10-bit magnetic — conflicting |
| Mass | 13.1 g |
Who makes it
MakerShenzhen Feetech RC Model (深圳飞特模型)
Based inChina
RoleBrand owner
Maglev estimate for EM3-class bus micro servos: $4-7 at 1,000 pcs (estimate, not a quote) in the Eyecandy benchmark.
Landed cost in the US
CN
41.9%
TW
10%
VN
16.9%
IN
14.4%
JP
12.5%
KR
12.5%
DE
10%
MX
14.4%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8501.10.40.60 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Equivalents from other makers
Sources
- https://www.switch-science.com/products/8042price + torque
- https://www.waveshare.com/sc09-servo.htmSC09 price $8.99
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
