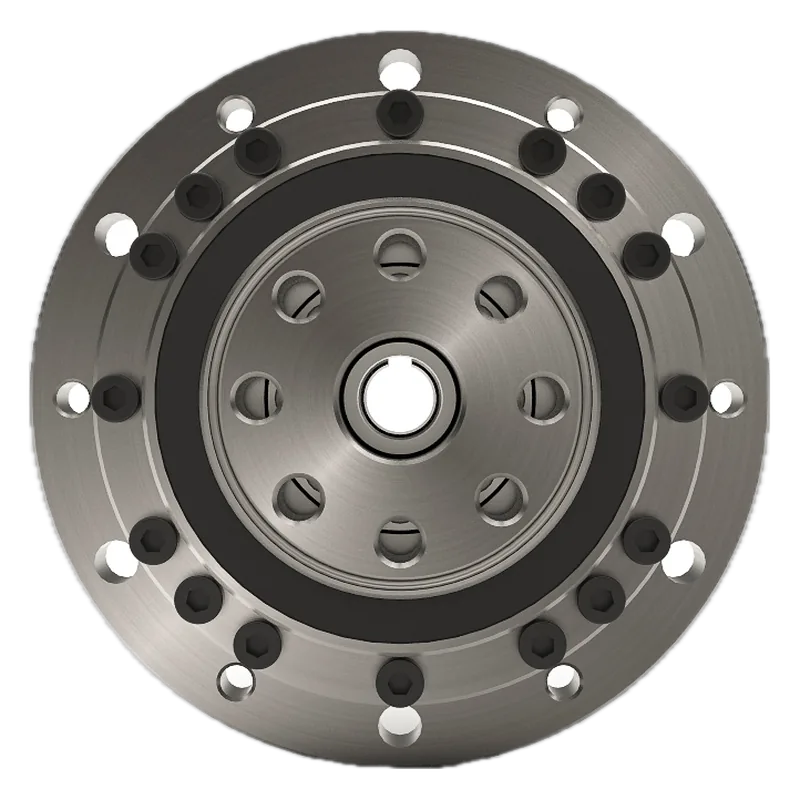

Harmonic Drive CSF-14-100-2UH Strain-Wave Gear Unit
Size-14 100:1 zero-backlash strain-wave gear unit with integrated cross-roller output bearing; the incumbent reference that Chinese harmonic reducers are measured against.
Specifications
| Ratio | 100:1 |
|---|---|
| Rated torque (L10) | 7.8 N·m |
| Repeated / momentary peak | 28 / 54 N·m |
| Backlash | zero backlash (standard accuracy 1.5 arcmin) |
| Outer diameter | unknown |
| Mass | 520 g |
| Backlash | 0 arcsec (zero backlash (standard accuracy 1.5 arcmin)) |
| Hollow shaft | unknown |
