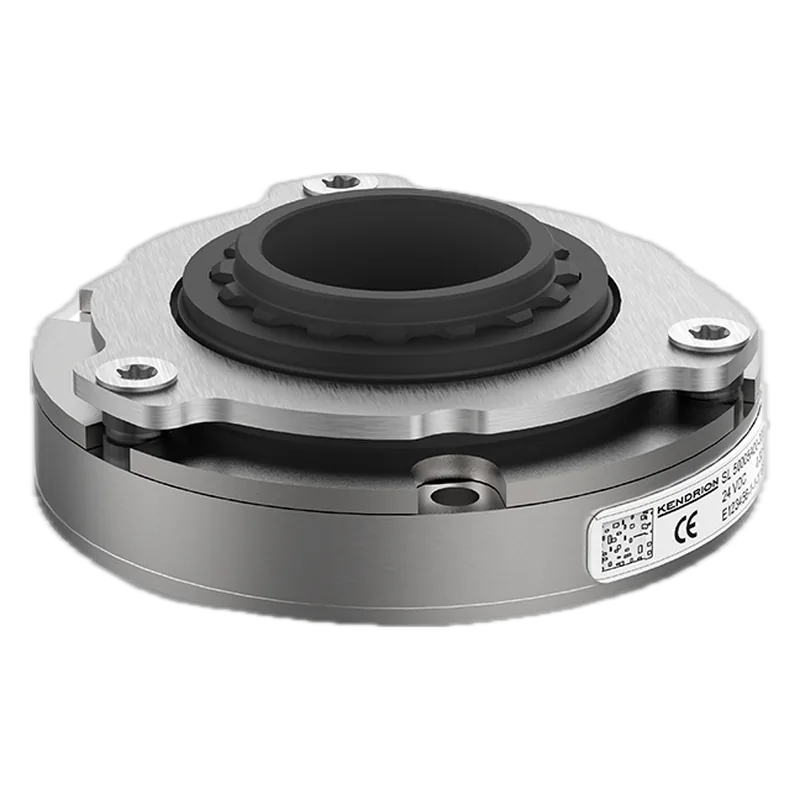

Kendrion Servo Slim Line Spring-Applied Brake, Size 12 (11 Nm)
Kendrion · MPN SL 50012A00-0001 · Maglev ID ac-kendrion-sl-50012a00-0001
DE Maker in Germany, factory not confirmed unknown VERIFIED
Western benchmark: slim spring-applied brake Kendrion markets for robotics, with a 63 mm inner diameter for hollow joints.
Specifications
| Holding torque | 11 Nm (M4 static) |
|---|---|
| Voltage | 24 VDC |
| Outer diameter | 127 mm |
| Axial thickness | 29.3 mm (length per Kendrion) |
| Type | Spring-applied, power-off, slim, large bore |
Who makes it
MakerKendrion
Based inGermany
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
40.6%
TW
10%
VN
15.6%
IN
13.1%
JP
12.5%
KR
12.5%
DE
10%
MX
13.1%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8505.20.0000 |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Sources
- https://kendrion.com/en/productfinder/group/product/brakes/sl-50012a00-0001product finder: 11 Nm, 24 V, 25 W, OD 127 mm, ID 63 mm, length 29.3 mm
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
