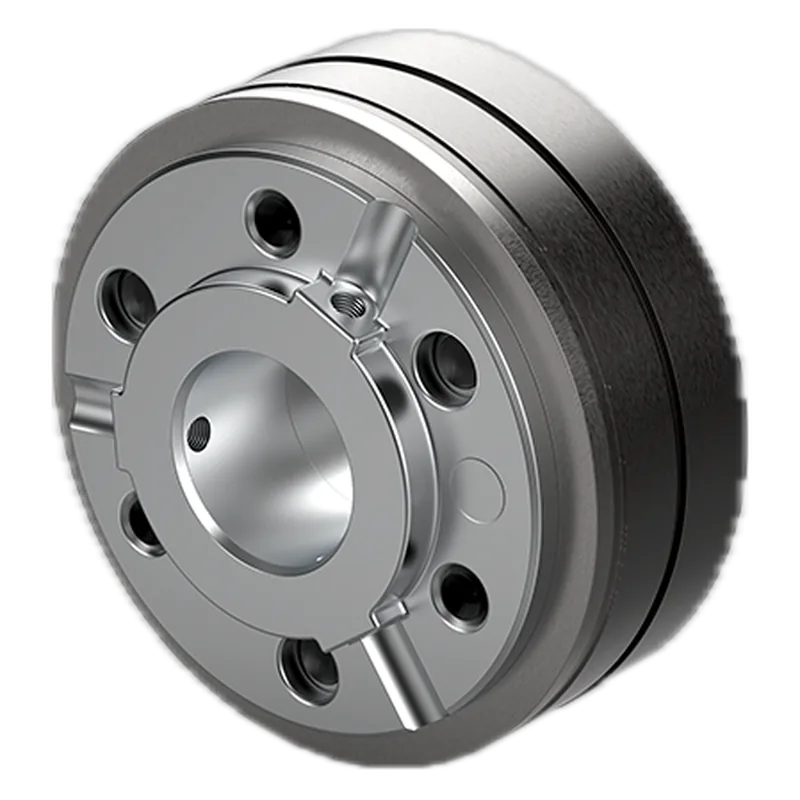

Kendrion Slim PM Line Permanent Magnet Brake, Size 08 (8 Nm)
Kendrion · MPN SP 61108K00-0001 · Maglev ID ac-kendrion-sp-61108k00-0001
DE Maker in Germany, factory not confirmed unknown VERIFIED
Western benchmark: thin permanent-magnet holding brake for low- and mid-torque servo motors and robot axes.
Specifications
| Holding torque | 8 Nm (M4 static) |
|---|---|
| Voltage | 24 VDC |
| Outer diameter | 82 mm |
| Axial thickness | 34.1 mm (overall length incl. hub per Kendrion) |
| Type | Permanent magnet, power-off, zero backlash |
Who makes it
MakerKendrion
Based inGermany
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
40.6%
TW
10%
VN
15.6%
IN
13.1%
JP
12.5%
KR
12.5%
DE
10%
MX
13.1%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8505.20.0000 |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Equivalents from other makers
Sources
- https://www.kendrion.com/en/productfinder/group/product/brakes/sp-61108k00-0001product finder: 8 Nm, 24 V, 17 W, OD 82 mm, length 34.1 mm
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
