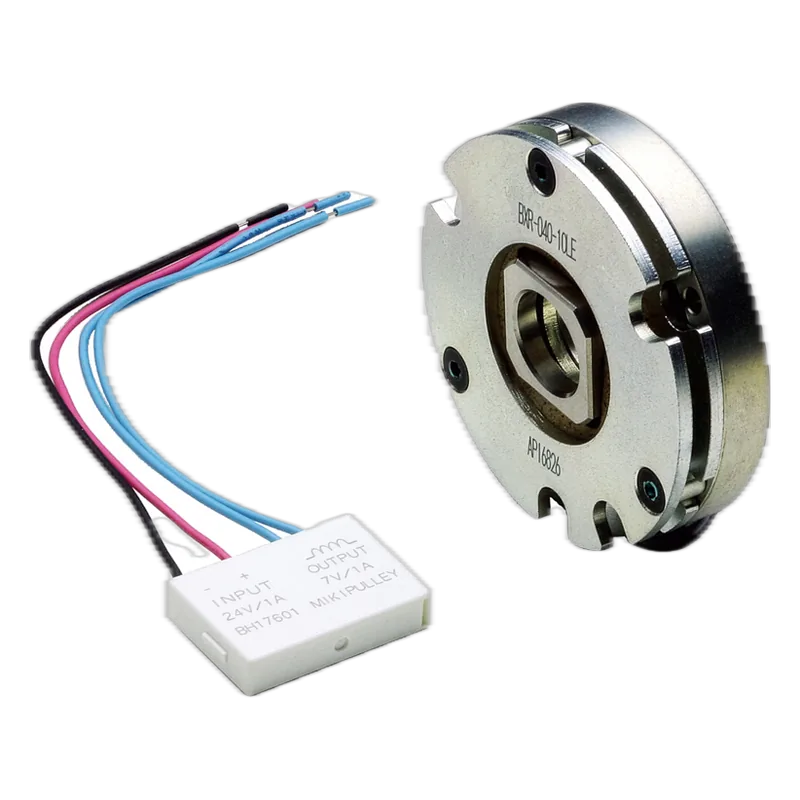

Miki Pulley BXR-040-10LE Ultra-Thin Holding Brake (1.32 Nm)
Miki Pulley · MPN BXR-040-10LE · Maglev ID ac-miki-pulley-bxr-040-10le
JP Maker in Japan, factory not confirmed unknown VERIFIED
Japanese benchmark: ultra-thin spring-applied holding brake for thin servo motors; used with Miki's overexcitation controller.
Specifications
| Holding torque | 1.32 Nm (static friction) |
|---|---|
| Voltage | 24 VDC overexcitation / 7 VDC steady |
| Outer diameter | 56 mm (A) |
| Axial thickness | 14.5 mm (K) |
| Type | Spring-applied, power-off, ultra-thin |
Who makes it
MakerMiki Pulley Co., Ltd.
Based inJapan
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
40.6%
TW
10%
VN
15.6%
IN
13.1%
JP
12.5%
KR
12.5%
DE
10%
MX
13.1%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8505.20.0000 |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Equivalents from other makers
Sources
- https://www.mikipulley.co.jp/en/electromagnetic-clutches-brakes/offbrakes/holding/bxr-lespec table: 1.32 Nm, 24/7 V, 16.5/1.4 W, OD 56, d max 14, 0.16 kg
- https://www.mikipulley.co.jp/media/cb_of_dyn_000_jpct.pdfcatalog BXR(LE) dimension table: K 14.5 mm
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
