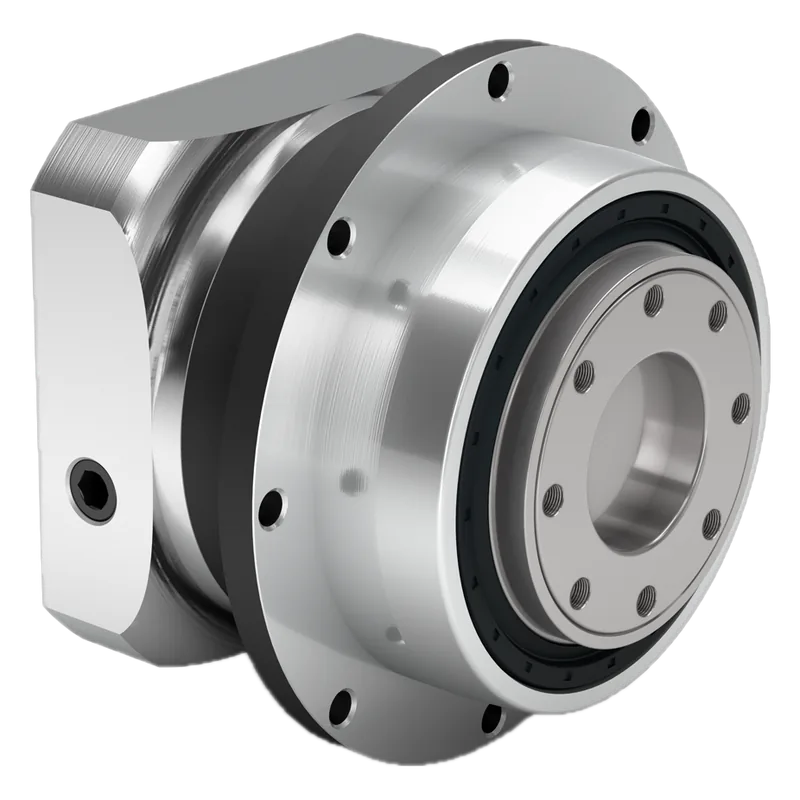

Neugart PLFN 090 Precision Flange-Output Planetary Gearbox
Neugart · MPN PLFN 090 (ratio in Tec Data Finder) · Maglev ID ac-neugart-plfn090
DE Maker in Germany, factory not confirmed unknown VERIFIED
German precision planetary with flange output for robot and rotary axes; cyclic torque 60-140 N·m (1-stage).
Specifications
| Ratio | 4/5/7/8/10 (1-stage), 16-100 (2-stage) |
|---|---|
| Cyclic torque T2Z | 60-140 N·m (1-stage), 60-150 N·m (2-stage) |
| Torsional backlash | <3 to <5 arcmin standard, <2 reduced |
| Frame size | 90 mm |
| Stages | 1 or 2 |
| Mass | 2.9-3.4 kg |
Who makes it
MakerNeugart GmbH (纽格尔 in China)
Based inGermany
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
Loading duty data…
Compliance
| HTS classification | 8483.40.50 |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
| Notes | 纽格尔 is Neugart's Chinese brand name (Neugart, Germany), not a separate Chinese maker. Price on quote. |
Equivalents from other makers
Sources
- https://www.neugart.com/en-us/gearboxes/precision-gearboxes/plfnPLFN data tables
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
