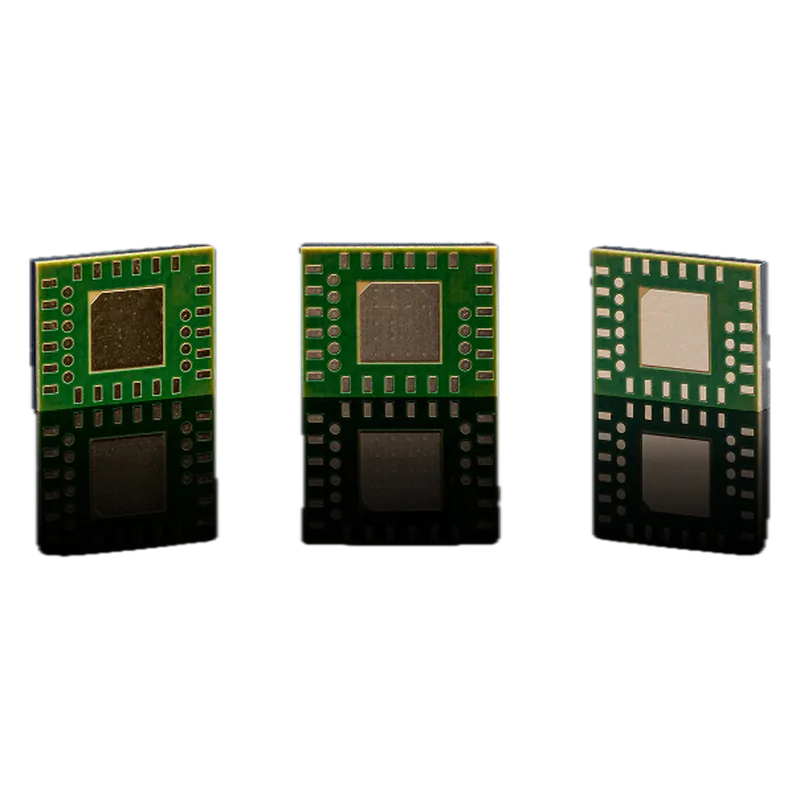

Novanta Aura Series Rotary IC Optical Encoder
Novanta (Celera Motion) · Maglev ID ac-novanta-aura-rotary
US Maker in United States, factory not confirmed unknown VERIFIED
9 x 7 mm SMT optical encoder IC with built-in scale eccentricity compensation, 18-22 bit rotary, for compact high-accuracy joint feedback.
Specifications
| Resolution | 18-22 bit (rotary) |
|---|---|
| Interface | BiSS-C, SSI, SPI, ABZ |
| Type | Optical encoder IC (reflective, needs scale), 9.0 x 7.0 x 1.1 mm SMT |
Who makes it
MakerNovanta
Based inUnited States
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
37.5%
TW
10%
VN
12.5%
IN
10%
JP
12.5%
KR
12.5%
DE
10%
MX
10%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 9031.80.80.85 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Equivalents from other makers
Sources
- https://novanta.com/robotics-automation/product/aura-series-ic-encoders/specs: 18-22 bit, ±0.005°, 83,721 rpm with 18 mm scale, 5 V
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
