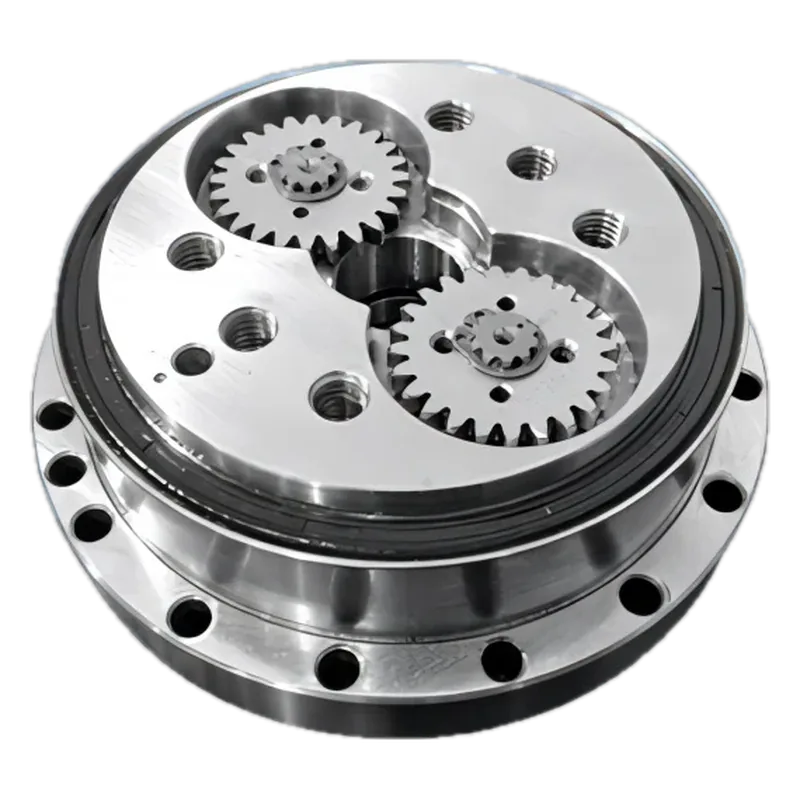

Qinchuan BX20E RV Reducer
Qinchuan · MPN BX20E · Maglev ID ac-qinchuan-bx20e
CN Maker in China, factory not confirmed unknown REPORTED
Qinchuan RV-E-format reducer sold by a US-facing reseller; 167 N·m rated at 15 r/min.
Specifications
| Ratio | 57 / 81 / 105 / 121 / 141 / 161 |
|---|---|
| Output torque at 15 r/min | 167 N·m |
| Permissible start/stop torque | 412 N·m (momentary max 833 N·m) |
| Lost motion (max) | 1 arcmin |
| Outer diameter | unknown |
| Hollow shaft | unknown (E-series) |
| Mass | 4.7 kg |
| Torsional stiffness | 49 N·m/arcmin |
Who makes it
MakerShaanxi Qinchuan Machine Tool & Tool Group (QCMT)
Based inChina
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
Loading duty data…
Compliance
| HTS classification | 8483.40.50 |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
| Notes | Specs and price from reseller aifitlab.com; 'available' flag true on store, all ratios same price. |
Equivalents from other makers
Sources
- https://aifitlab.com/products/qinchuan-bx20e-reducerreseller spec table, price, stock
- https://aifitlab.com/products/qinchuan-bx20e-reducer.jsonvariant prices
Record confidence: REPORTED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
