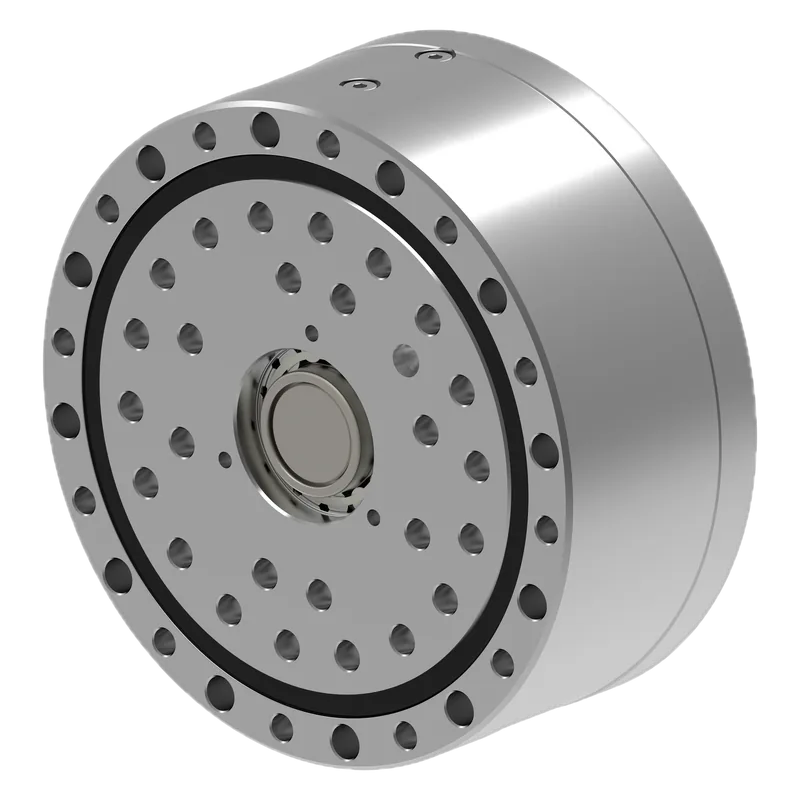

Spinea TwinSpin TS 110 Reduction Bearing (T series)
Spinea · MPN TS 110 (ratio 33/67/89/119) · Maglev ID ac-spinea-ts110
SK Maker in SK, factory not confirmed unknown VERIFIED
Mid-size TwinSpin cycloidal reduction gear with built-in output bearing; 122 N·m rated, <1 arcmin lost motion.
Specifications
| Ratio | 33 / 67 / 89 / 119 |
|---|---|
| Rated output torque | 122 N·m |
| Acceleration/braking torque | 244 N·m (emergency stop 610 N·m) |
| Max. lost motion | <1.0 arcmin |
| Outer diameter | unknown |
| Hollow shaft | No (T series; hollow version is H series) |
| Mass | 3.76 kg |
Who makes it
MakerSPINEA s.r.o. (Spinea by Timken)
Based inSK
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
Loading duty data…
Compliance
| HTS classification | 8483.40.50 |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
| Notes | Size number is a frame designation; OD not given in the page text. |
Equivalents from other makers
Sources
- https://spinea.com/en/products/twinspin/t-seriesT series rating tables I and II
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
