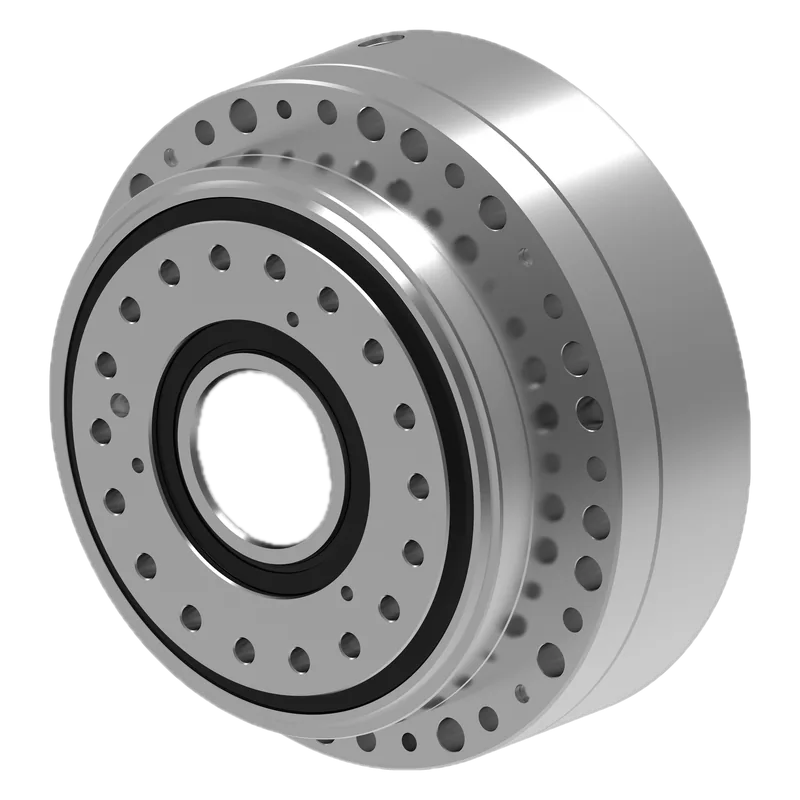

Spinea TwinSpin TS 140 Hollow-Shaft Reduction Bearing (H series)
Spinea · MPN TS 140-69 H (36 mm bore) / TS 140-115 H · Maglev ID ac-spinea-ts140-h
SK Maker in SK, factory not confirmed unknown VERIFIED
Hollow-shaft TwinSpin with 36 mm through-bore for cable routing; 200 N·m rated at ratio 69.
Specifications
| Ratio | 69 / 115 |
|---|---|
| Rated output torque | 200 N·m (ratio 69) |
| Acceleration/braking torque | 500 N·m (emergency stop 1,000 N·m) |
| Max. lost motion | <1.0 arcmin |
| Outer diameter | unknown |
| Shaft inside diameter | Yes, 36 mm |
| Mass | 7.5 kg |
Who makes it
MakerSPINEA s.r.o. (Spinea by Timken)
Based inSK
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
Loading duty data…
Compliance
| HTS classification | 8483.40.50 |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Equivalents from other makers
Sources
- https://spinea.com/en/products/twinspin/h-seriesH series rating tables
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
