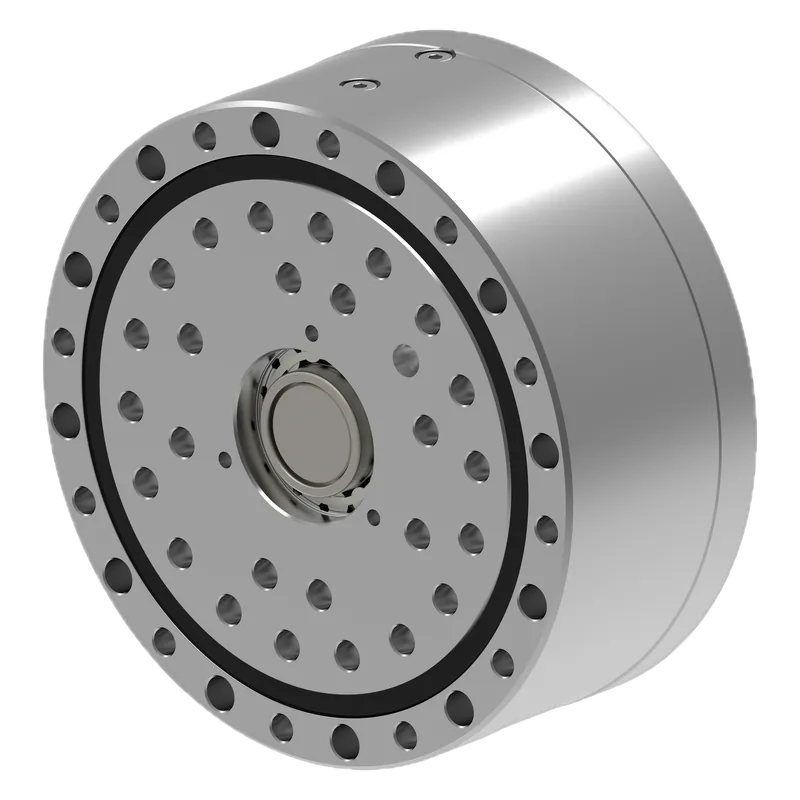

Spinea TwinSpin TS 140 Reduction Bearing (T series)
Spinea · MPN TS 140 (ratio 33/57/87/115/139) · Maglev ID ac-spinea-ts140
SK Maker in SK, factory not confirmed unknown VERIFIED
Larger TwinSpin for heavy robot joints and rotary tables; 268 N·m rated with integrated radial-axial bearing.
Specifications
| Ratio | 33 / 57 / 87 / 115 / 139 |
|---|---|
| Rated output torque | 268 N·m |
| Acceleration/braking torque | 670 N·m (emergency stop 1,340 N·m) |
| Max. lost motion | <1 arcmin (per page table) |
| Outer diameter | unknown |
| Hollow shaft | No (T series) |
Who makes it
MakerSPINEA s.r.o. (Spinea by Timken)
Based inSK
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
Loading duty data…
Compliance
| HTS classification | 8483.40.50 |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
| Notes | Lost-motion cell for TS 140 was truncated in the page text; check catalogue. |
Sources
- https://spinea.com/en/products/twinspin/t-seriesT series rating tables
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
