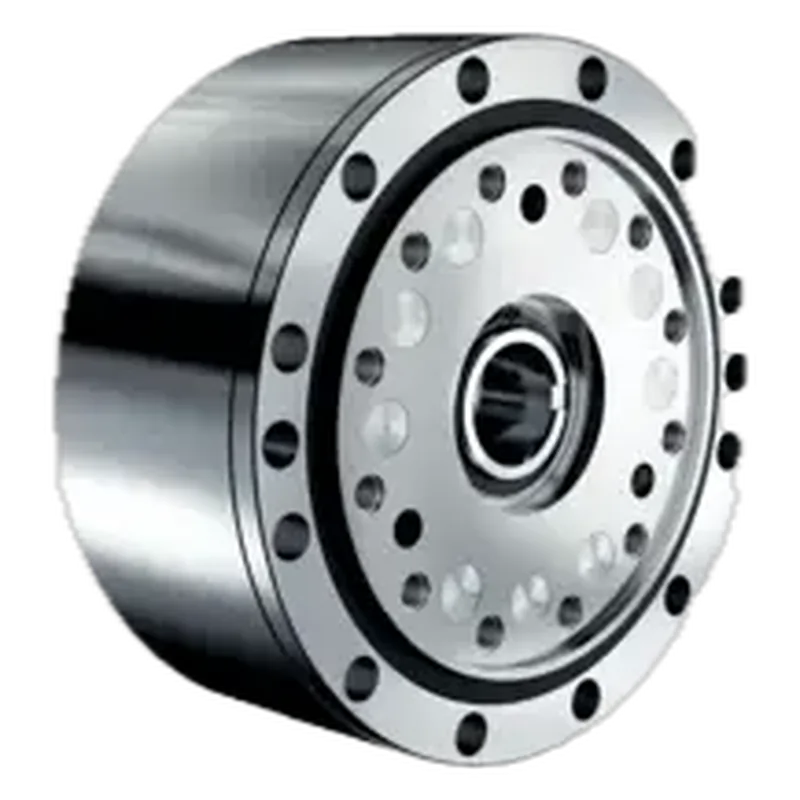

Sumitomo Fine Cyclo F2C-A25 Precision Cycloidal Gearbox
Sumitomo · MPN F2C-A25 (ratio 29 or 59-119) · Maglev ID ac-sumitomo-f2c-a25
JP Maker in Japan, factory not confirmed unknown VERIFIED
Mid-size Fine Cyclo A-series unit; 349 N·m nominal at ratios 59-119, 156 mm OD.
Specifications
| Ratio | 29 / 59 / 89 / 119 |
|---|---|
| Nominal output torque | 283 N·m (i=29), 349 N·m (i=59-119) |
| Accel./decel. torque | 721 N·m (listed for i=29 row) |
| Lost motion | <1 arcmin |
| Housing diameter G | 156 mm |
| Hollow shaft | No (C-series is the hollow version) |
| Mass | 7.3 kg |
Who makes it
MakerSumitomo Heavy Industries / Sumitomo Drive Technologies
Based inJapan
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
Loading duty data…
Compliance
| HTS classification | 8483.40.50 |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
| Notes | The accel. torque cell for i=59-119 was merged in the page table; 721 N·m is the value shown in the i=29 row. |
Sources
- https://us.sumitomodrive.com/en-us/product/fine-cyclo-series-f2-type-0Technical info tables
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
