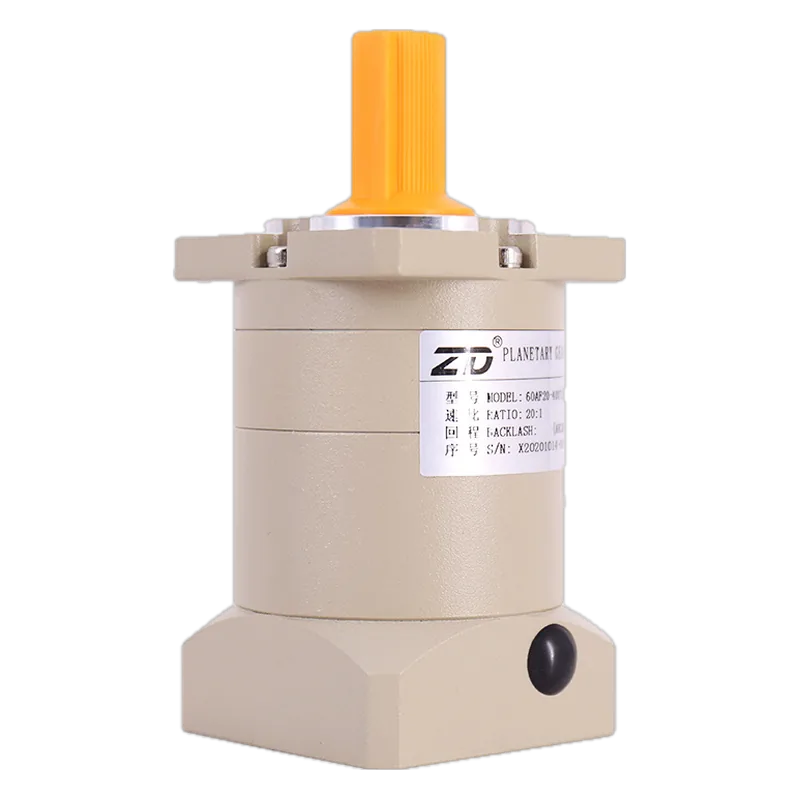

Zhongda Leader 60AF Helical Planetary Gearbox, 20:1
Zhongda Leader (ZD) · MPN 60AF20 (motor flange per order) · Maglev ID ac-zd-60af-020
CN Maker in China, factory not confirmed unknown VERIFIED
Chinese 60 mm helical servo planetary, two-stage 20:1; 41 N·m rated, ≤8 arcmin.
Specifications
| Ratio | 20:1 |
|---|---|
| Rated output torque | 41 N·m |
| Backlash | ≤8 arcmin (2-stage) |
| Frame size | 60 mm (□62 flange) |
| Stages | 2 |
| Mass | 1.2 kg |
Who makes it
MakerNingbo Zhongda Leader Intelligent Transmission Co., Ltd. (中大力德)
Based inChina
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
Loading duty data…
Compliance
| HTS classification | 8483.40.50 |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Equivalents from other makers
Sources
- https://en.zd-motor.com/products_detail/348.htmlAF rated torque, backlash, weight tables
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
