Catalog / Actuators & Transmission / Precision Planetary Reducers
Zhongda Leader 90AF Helical Planetary Gearbox, 10:1

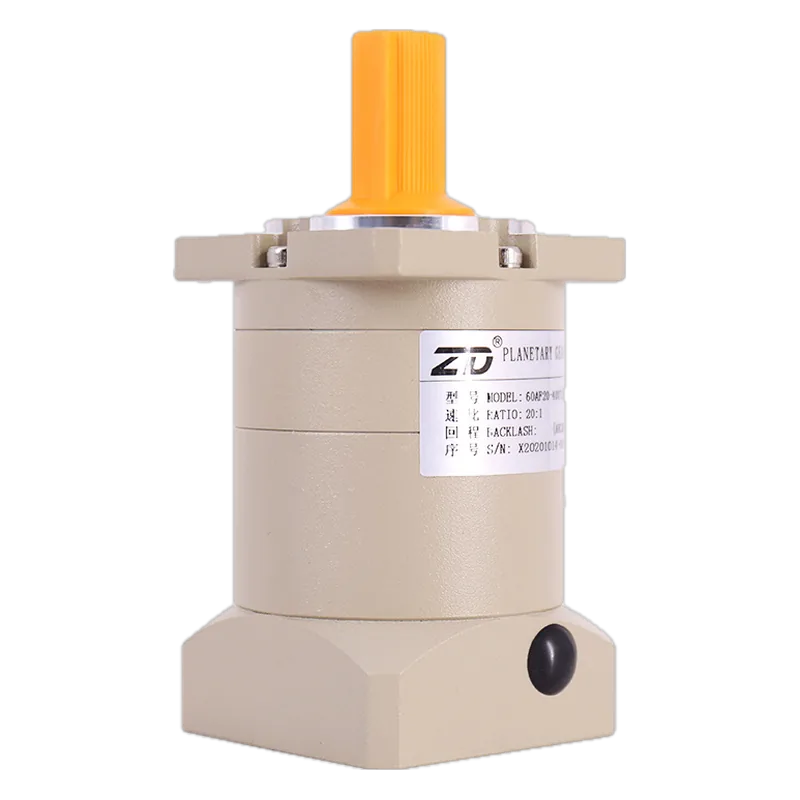

Photo: en.zd-motor.com. series photo (60AF shown); CDN requires referer
Datasheet not published CAD ask with your quote Maker's page This part as JSONThis part as Markdown

Zhongda Leader 90AF Helical Planetary Gearbox, 10:1

Zhongda Leader (ZD) · MPN 90AF10 (motor flange per order) · Maglev ID ac-zd-90af-010
CN Maker in China, factory not confirmed unknown VERIFIED

Chinese 90 mm helical servo planetary, single-stage 10:1; 70 N·m rated, ≤5 arcmin.

Specifications

Ratio10:1
Rated output torque70 N·m
Backlash≤5 arcmin (1-stage)
Frame size90 mm
Stages1
Mass2.5 kg

Who makes it

MakerNingbo Zhongda Leader Intelligent Transmission Co., Ltd. (中大力德)
Based inChina
RoleBrand owner

Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.

Landed cost in the US

Loading duty data…

Compliance

HTS classification8483.40.50
NDAAunknown
Blue UASunknown
FCCn/a

How we source tariff and compliance data

Equivalents from other makers

Apex Dynamics AB090 Helical Planetary Gearbox, 5:1Apex Dynamics AB090 Helical Planetary Gearbox, 5:1Apex Dynamics · TW · Quote

Sources

Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
