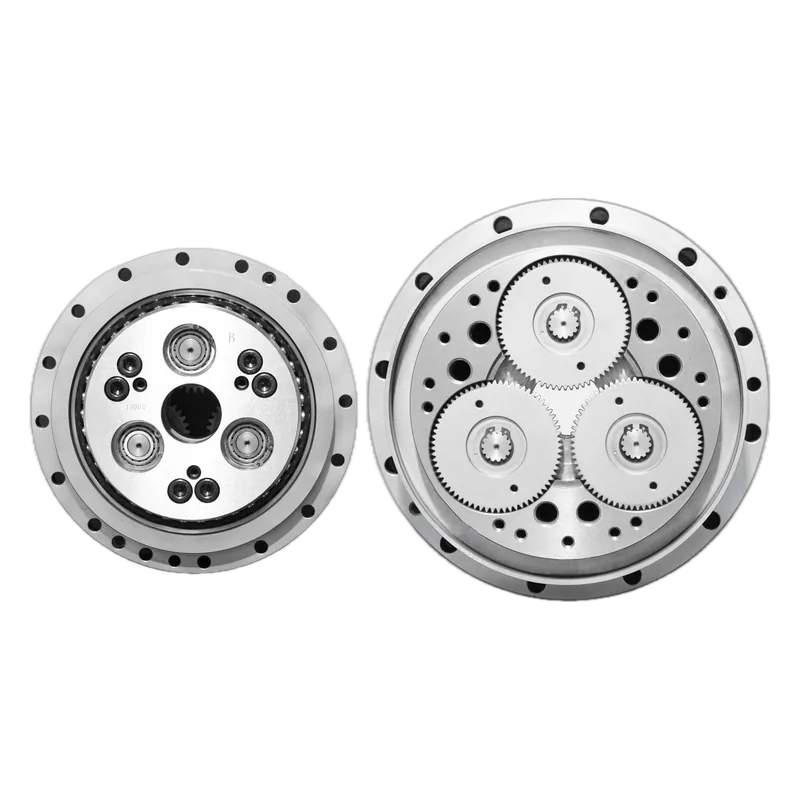

Zhenkang ZKRV-40E RV Reducer
Zhenkang (振康) · MPN ZKRV-40E · Maglev ID ac-zhenkang-zkrv-40e
CN Maker in China, factory not confirmed unknown VERIFIED
Nantong Zhenkang ZKRV-40E RV reducer (E-type); 412 N·m rated, 1 arcmin backlash.
Specifications
| Ratio | 57 / 81 / 105 / 121 / 153 |
|---|---|
| Rated torque | 412 N·m |
| Allowable start/stop torque | 1030 N·m (momentary max 2060 N·m) |
| Backlash | 1 arcmin (lost motion 1 arcmin) |
| Outer diameter | 190 mm (dimension A) |
| Hollow shaft | unknown |
| Mass | 9.3 kg |
Who makes it
MakerNantong Zhenkang Welding Electromechanical Co., Ltd. (南通振康焊接机电有限公司)
Based inChina
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
Loading duty data…
Compliance
| HTS classification | 8483.40.50 |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
| Notes | Specs read from maker spec-table image (Chinese). |
Equivalents from other makers
Sources
- https://www.zhenkang.com/product_detail/570656.htmlZKRV-E product page
- http://img.iapply.cn/75d4ad2db89a179c63d5757a71787414rating/dimension table image
- https://www.zhenkang.com/product/216300.htmlRV category page with series photo
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
