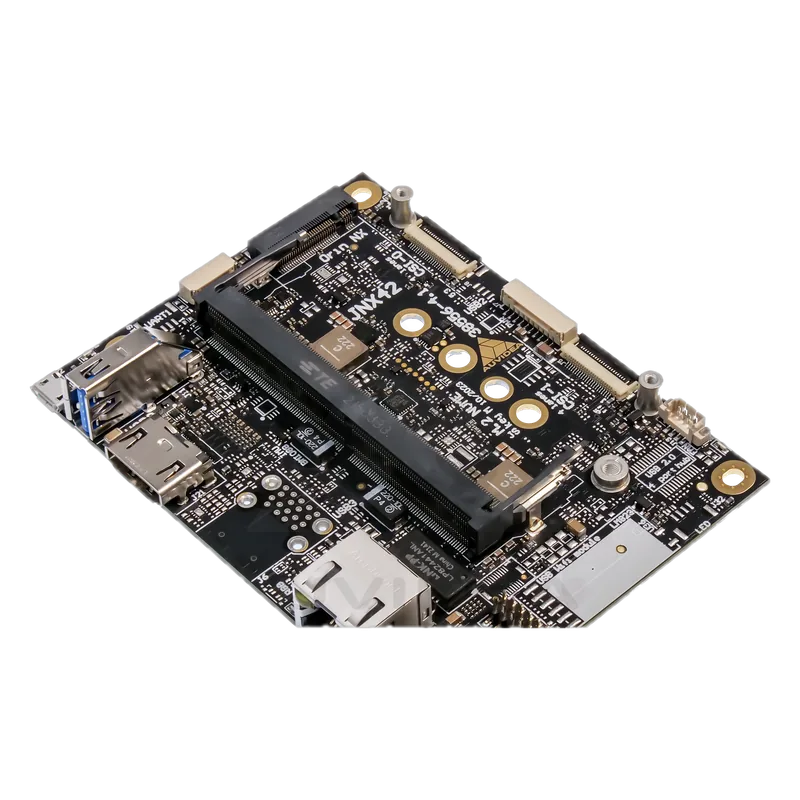

JNX42 Carrier Board
Auvidea · MPN 70784 · Maglev ID cm-auvidea-jnx42
DE Maker in Germany, factory not confirmed unknown VERIFIED
Compact German carrier with two 4-lane CSI-2 ports, CAN and PoE PD, popular for drones on Orin NX/Nano.
Specifications
| Modules | Jetson Orin Nano, Orin NX (also Xavier NX with reduced USB/CSI) |
|---|---|
| Ethernet | 1x RJ45 Gigabit with PoE PD |
| Camera inputs | 2x CSI-2, 4 lanes each (22-pin) |
| Power input | 12 V on base board; optional power module 38515 accepts 12-48 V; or PoE PD |
| Dimensions | unknown |
Who makes it
MakerAuvidea GmbH
Based inGermany
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
25%+?
TW
0%+?
VN
0%+?
IN
0%+?
JP
0%+?
KR
0%+?
DE
0%+?
MX
0%+?
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8473.30.11.80 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | unknown |
| Notes | Price only in EUR on maker page (not converted). Arrow listed JNX42-LC at $128.78 (search snippet, out of stock). |
Works with
Sources
- https://auvidea.eu/product/70784/variants LC/M.2/LM, specs, EUR 179-229 ex VAT; 100-pc budgetary EUR 110.78 (LC) / 188.06 (M.2) / 196.65 (LM); STEP link
- https://developer.ridgerun.com/wiki/index.php/NVIDIA_Jetson_Orin_Nano/Introduction/Carrier_Boards/JNX42RJ45 PoE, 12-48 V
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
