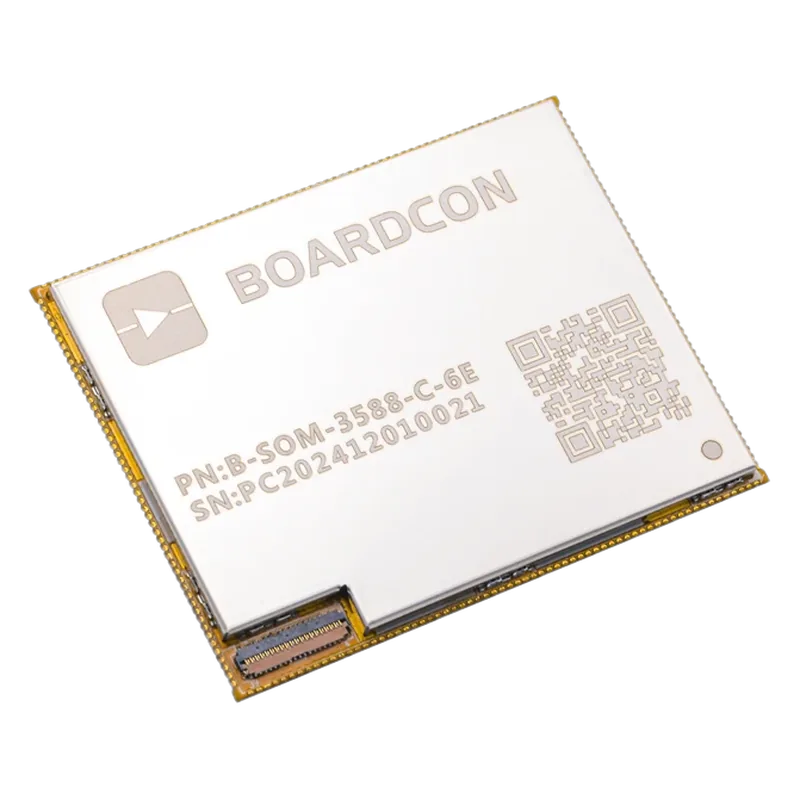

Boardcon CM3588 / CM3588J
Boardcon · Maglev ID cm-boardcon-cm3588
CN Maker in China, factory not confirmed unknown VERIFIED
RK3588 SoM in a 230-pin solderable (stamp-hole/QFN-style) package with commercial and industrial grades, for boards that solder the module down.
Specifications
| SoC | Rockchip RK3588 / RK3588J |
|---|---|
| NPU | 6 TOPS |
| Memory | LPDDR4X 8GB / 16GB |
| Form factor | 230-pin 1.0mm-pitch solderable module (QFN-style) + 39-pin FPC, 67 x 53 mm |
| Operating temp | 0 to 70 C (commercial); -40 to 85 C (industrial) |
| eMMC | 32/64/128/256GB |
| Power input | DC 4V |
Who makes it
MakerBoardcon Embedded Design
Based inChina
RoleBrand owner
Boardcon (mfg-comp-066) explicitly offers ODM服务 and 项目定制服务 (project customization) per the repo record.
Landed cost in the US
CN
25%+?
TW
0%+?
VN
0%+?
IN
0%+?
JP
0%+?
KR
0%+?
DE
0%+?
MX
0%+?
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8473.30.11.80 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Sources
- https://armdesigner.com/CM3588_SOMspecs, temp grades, hardware manual link; no price
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
