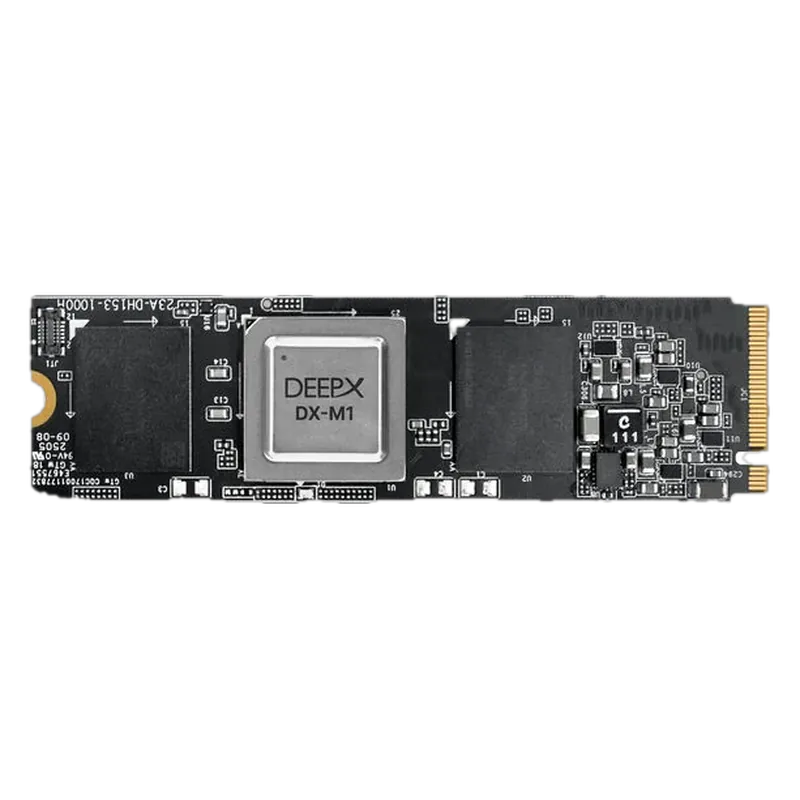

DEEPX DX-M1 M.2 AI Accelerator Module
DEEPX · MPN DX-M1BNM5604 · Maglev ID cm-deepx-dx-m1
KR Maker in South Korea, factory not confirmed unknown VERIFIED
Korean 25 TOPS NPU on an M.2 2280 Key M card with 4 GB LPDDR5 at 5 W typical, now shipping via Digi-Key; a Hailo-8 alternative.
Specifications
| AI performance | 25 TOPS (INT8) |
|---|---|
| Host interface | PCIe Gen3 x4 (supports Gen1/2/3, x1/x2/x4) |
| Form factor | M.2 2280 Key M, 22 x 80 x 4.72 mm |
| Power | 5 W typical |
| Operating temp | 0 to 70 C (commercial); -25 to 85 C (extended); -40 to 85 C (industrial) |
| Memory | 4 GB LPDDR5 |
Who makes it
MakerDEEPX Co., Ltd.
Based inSouth Korea
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
25%+?
TW
0%+?
VN
0%+?
IN
0%+?
JP
0%+?
KR
0%+?
DE
0%+?
MX
0%+?
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8473.30.11.80 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | unknown |
Equivalents from other makers
Sources
- https://deepx.ai/products/dx-m1/specs overview, temp grades
- https://cdn.deepx.ai/wp-content/uploads/2026/09/04110622/DEEPX-DX-M1-M.2-Module-AI-Accelerator-E-Brochure.pdfmodule brief: 25 TOPS, 4 GB LPDDR5, 5 W typ, 2280 M key, temp grades, x86/ARM
- https://deepx.ai/shop_now/shipping on Digi-Key; Digi-Key link carries DX-M1BNM5604 (Digi-Key page returned 403, no price seen)
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
