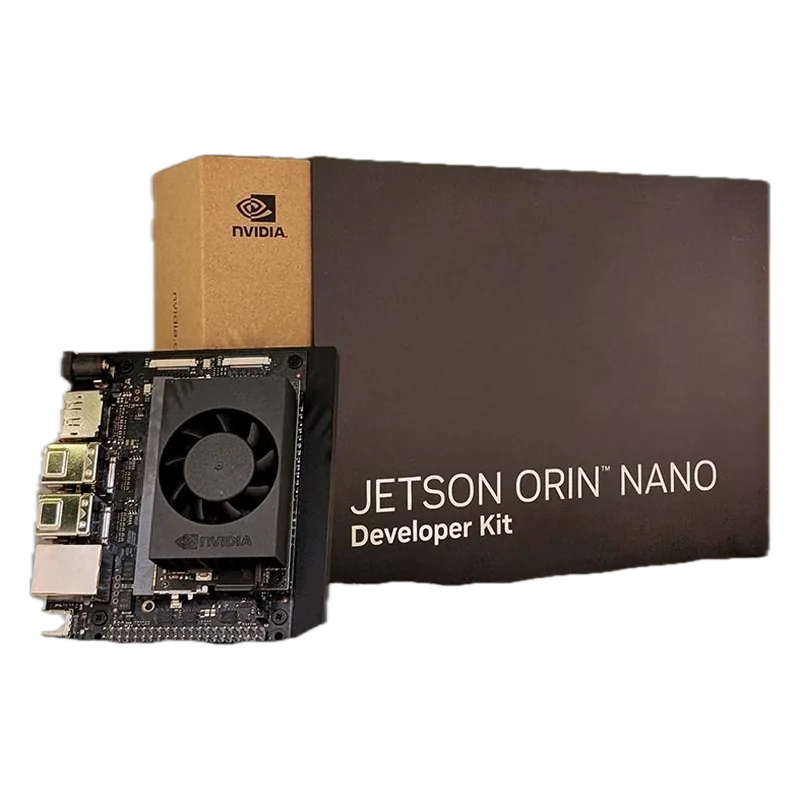

Jetson Orin Nano Super Developer Kit
NVIDIA · MPN 945-13766-0000-000 · Maglev ID cm-jetson-orin-nano-super-devkit
US Maker in United States, factory not confirmed unknown VERIFIED
NVIDIA's reference Orin Nano kit (module + carrier) and the default starting point for Jetson prototypes.
Specifications
| Modules | Includes Jetson Orin Nano 8GB-class module; 67 INT8 TOPS (Super) |
|---|---|
| Ethernet | 1x Gigabit Ethernet |
| Camera inputs | 2x 22-pin MIPI CSI-2 (CAM0 x2 lane, CAM1 x2 or x4 lane) |
| Power input | DC jack 5.5 x 2.5 mm; 7-25 W system power |
| Dimensions | 100 x 79 x 21 mm incl. module and heatsink (Waveshare listing of NVIDIA kit) |
| AI performance | 67 TOPS (INT8 sparse, Super) |
Who makes it
MakerNVIDIA
Based inUnited States
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
25%+?
TW
0%+?
VN
0%+?
IN
0%+?
JP
0%+?
KR
0%+?
DE
0%+?
MX
0%+?
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8473.30.11.80 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | unknown |
| Notes | Regional MPNs: 945-13766-0000-000 (US/CA/CN/JP/PH), 945-13766-0005-000 (EU/UK/other). Dev kit operating range 0-35 C per NVIDIA carrier spec (forum citation). |
Works with
Sources
- https://www.nvidia.com/en-us/autonomous-machines/embedded-systems/jetson-orin/nano-super-developer-kit/67 TOPS, 7-25 W
- https://docs.nvidia.com/jetson/orin-nano-devkit/user-guide/latest/hardware_layout.htmlEthernet, CSI connectors, DC jack; dev-kit carrier spec on Download Center
- https://www.sparkfun.com/products/22098SparkFun DEV-22098 retail $399 (launch was $249; now $399)
- https://www.oemstrade.com/search/945-13766-0000-000US-region MPN; Arrow $399 (1 in stock, 12 wk), RS $459, Newark $311.25 (0 stock)
- https://www.waveshare.com/jetson-orin-nano-super-developer-kit.htmsearch snippet: 100 x 79 x 21 mm; Waveshare resells NVIDIA kit SKU 30211 at $634.99
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
