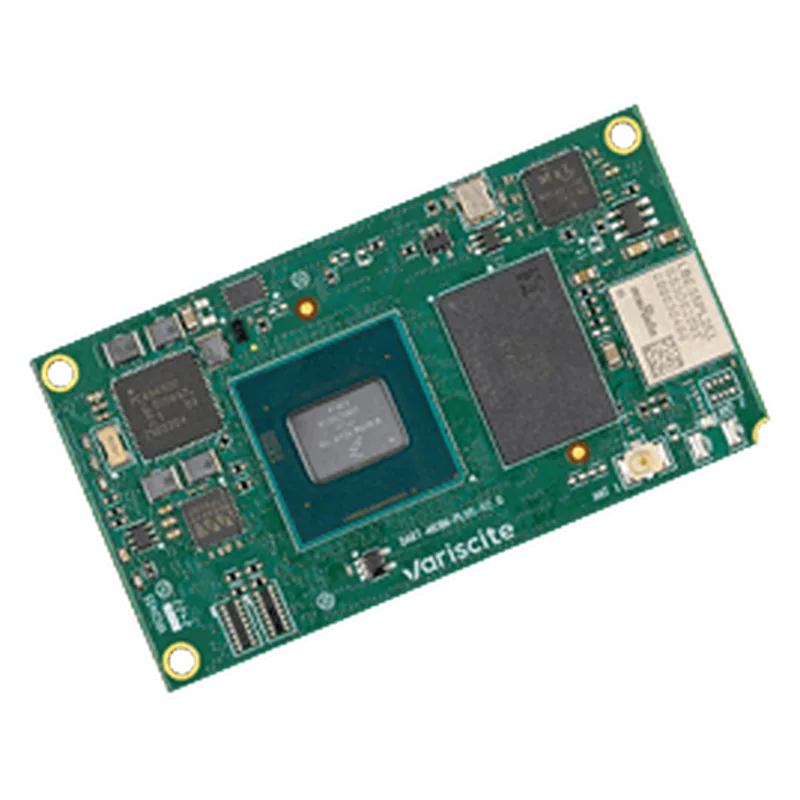

Variscite DART-MX8M-PLUS V2
Variscite · Maglev ID cm-variscite-dart-mx8m-plus
IL Maker in Israel, factory not confirmed unknown VERIFIED
Compact 55 x 30 mm i.MX 8M Plus SoM from Israel with Wi-Fi 6 on V2 and three temperature grades.
Specifications
| SoC | NXP i.MX 8M Plus Quad (A53 up to 1.8 GHz + M7) |
|---|---|
| NPU | 2.3 TOPS |
| RAM | 1-8 GB LPDDR4 (priced stock config 4 GB) |
| Form factor | DART SoM, 55 x 30 mm; eMMC 8-128 GB |
| Operating temp | 0 to 70 C / -25 to 85 C / -40 to 85 C |
Who makes it
MakerVariscite
Based inIsrael
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
25%+?
TW
0%+?
VN
0%+?
IN
0%+?
JP
0%+?
KR
0%+?
DE
0%+?
MX
0%+?
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8473.30.11.80 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | unknown |
Equivalents from other makers
Sources
- https://www.variscite.com/product/system-on-module-som/cortex-a53-krait/dart-mx8m-plus-nxp-i-mx-8m-plus/specs, temps, datasheet, DXF/3D
- https://shop.variscite.com/product/system-on-module/dart-mx8m-plus-system-on-module/prices by config
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
