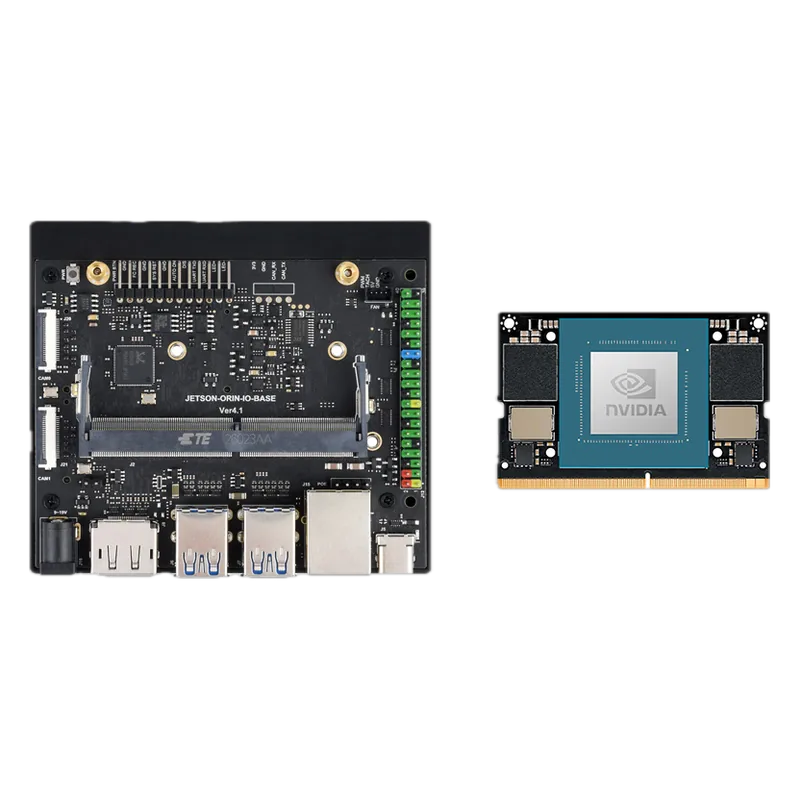

Jetson Orin Nano Dev Kit (JETSON-ORIN-IO-BASE)
Waveshare · MPN JETSON-ORIN-NANO-DEV-KIT · Maglev ID cm-waveshare-jetson-orin-nano-kit
CN Maker in China, factory not confirmed unknown VERIFIED
Waveshare's own Orin Nano kit on its JETSON-ORIN-IO-BASE board, a cheaper-sourced alternative to the NVIDIA kit.
Specifications
| Modules | Jetson Orin Nano 4GB/8GB (included; Super-capable) |
|---|---|
| Ethernet | 1x Gigabit Ethernet |
| Camera inputs | 2x MIPI CSI-2 (8 lanes total) |
| Power input | DC power jack, adapter included in DEV-KIT |
| Dimensions | 103 x 90.5 x 34 mm (kit) |
Who makes it
MakerWaveshare
Based inChina
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
25%+?
TW
0%+?
VN
0%+?
IN
0%+?
JP
0%+?
KR
0%+?
DE
0%+?
MX
0%+?
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8473.30.11.80 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | unknown |
| Notes | Waveshare also sells a dual-Ethernet variant (JETSON-ORIN-ETH-NANO-DEV-KIT). |
Works with
Sources
- https://www.waveshare.com/jetson-orin-nano-dev-kit.htmSKUs 24499 (4GB) / 24505 (8GB), specs, price range $509.99-$758.99 across options (not per SKU)
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
