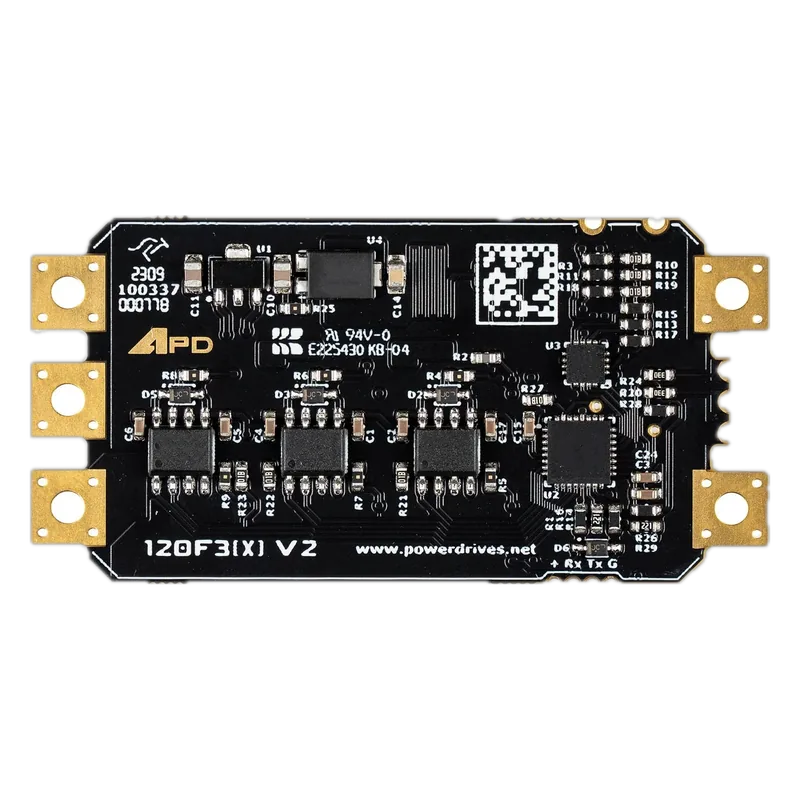

APD 120F3[X] v2 ESC
Advanced Power Drives (APD) · Maglev ID dr-apd-120f3x-v2
AU Made in Australia unknown VERIFIED
Australian-made 12S 120 A single-motor ESC with DShot/ProShot and telemetry, for heavy-lift and racing.
Specifications
| Continuous current | up to 120 A (200 A burst) |
|---|---|
| Cells (LiPo) | up to 12S (50.4 V) |
| Protocol | ProShot1000, DShot150-600, bidirectional DShot, telemetry |
| Weight | 0.02 kg |
Who makes it
MakerAdvanced Power Drives
Based inAustralia
RoleFactory
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
37.5%
TW
10%
VN
12.5%
IN
10%
JP
12.5%
KR
12.5%
DE
10%
MX
10%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8504.40.40.00 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | not-listed |
| FCC | n/a |
| Notes | APD: 'Proudly Designed and Manufactured in Australia'; 'NDAA/DFARS-compliant options are available upon request.' No price captured from a page opened. 80F3[X] v2 sibling: 80 A / 8S. |
Equivalents from other makers
Sources
- https://powerdrives.net/f-seriesspecs, NDAA note
- https://powerdrives.net/made in Australia
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
