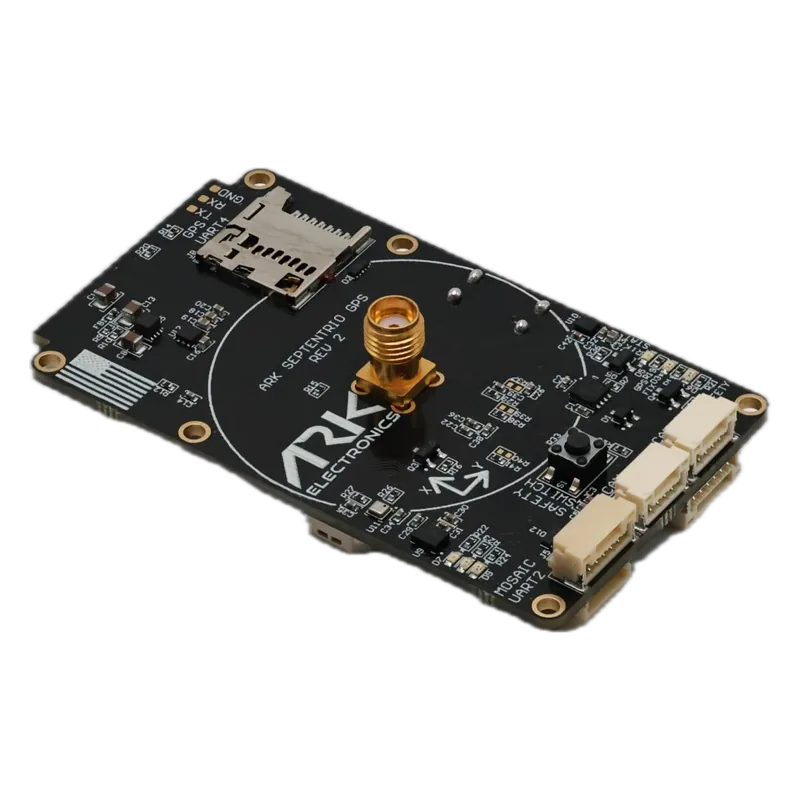

ARK Electronics ARK MOSAIC-X5 RTK GPS
ARK Electronics · MPN ARK-MOSAIC-X5-GPS · Maglev ID dr-ark-mosaic-x5-gps
US Made in United States NDAA VERIFIED
US-built DroneCAN triple-band RTK GPS on the Septentrio mosaic-X5 with AIM+ anti-jamming, 100 Hz.
Specifications
| Constellations | Multi-constellation, triple band L1/L2/L5 (Septentrio mosaic-X5) |
|---|---|
| RTK | Yes, Septentrio mosaic-X5, AIM+ jamming protection, 100 Hz |
| Interface | DroneCAN + USB-C to mosaic |
| Weight | 21 g |
Who makes it
MakerARK Electronics
Based inUnited States
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
37.5%
TW
10%
VN
12.5%
IN
10%
JP
12.5%
KR
12.5%
DE
10%
MX
10%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8526.91.00.20 typical, not a ruling |
|---|---|
| NDAA | compliant |
| Blue UAS | not-listed |
| FCC | n/a |
| Notes | ARK page states 'USA Built, NDAA Compliant' but this board is not itself on the DCMA list; the Septentrio 'mosaic-X5' receiver module is listed (Component, 2026-07-10). |
Equivalents from other makers
Sources
- https://arkelectron.com/product/ark-mosaic-x5-gps/specs, price, statements
- https://bluelist.dcma.mil/gsp?id=gsp_indexDCMA Blue UAS list (Cleared List + Framework, transitioned from DIU), 'Blue List Products' table read 2026-10-29: entry 'Septentrio / mosaic-X5 (module)'
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
