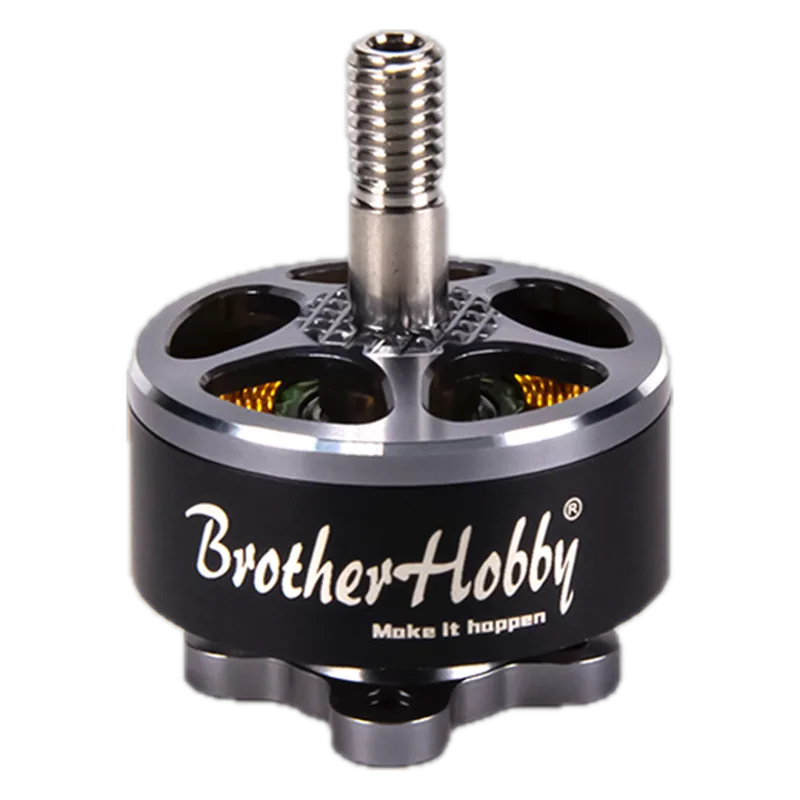

BrotherHobby Avenger 2207.5 V3 FPV Motor
BrotherHobby · MPN BH107 · Maglev ID dr-brotherhobby-avenger-22075-v3
?? Origin not confirmed unknown REPORTED
5-6S 5-inch FPV motor offered in 1750/1900/2350KV; spec below is the 1900KV test report.
Specifications
| KV | 1900 (test report; also 1750/2350) |
|---|---|
| Stator | 22 x 7.5 mm, 12N14P |
| Max thrust | 2042 g (HQ 5.1x4.1x3, 23.8 V, 100%) |
| Weight | 33.6 g with 16 cm wire |
| Cells (LiPo) | 5-6S |
Who makes it
MakerBrotherHobby
Based inunknown
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
41.5%
TW
10%
VN
16.5%
IN
14%
JP
12.5%
KR
12.5%
DE
10%
MX
14%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8501.31.40.00 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | not-listed |
| FCC | n/a |
| Notes | Store price shown for a '1700KV' option that conflicts with the listed KVs; treat as indicative. Maker HQ not stated on the pages opened. Motors and props are not among the critical components enumerated in NDAA FY2020 §848, so no NDAA claim is made either way; check your program's own sourcing rules. |
Equivalents from other makers
Sources
- https://www.brotherhobbystore.com/products/avenger-22075-v3specs, test report, price
Record confidence: REPORTED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
