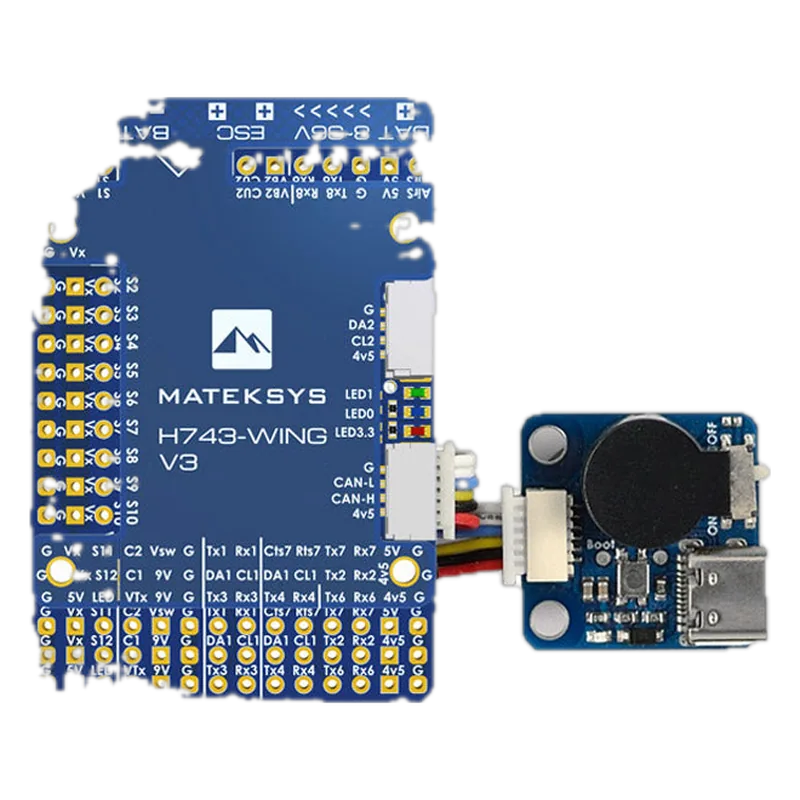

Matek H743-WING V3
Matek Systems · MPN MAT-H743-WING-V3 · Maglev ID dr-matek-h743-wing-v3
CN Maker in China, factory not confirmed Not NDAA REPORTED
H7 fixed-wing/VTOL flight controller for ArduPilot/INAV with 7 UARTs and CAN; China-made, now hard to find.
Specifications
| Processor | STM32H743VIT6 480 MHz |
|---|---|
| IMUs | 2 (ICM42688-P + ICM42605 per fpv24; Lumenier lists MPU6000 + ICM42605) |
| Weight | 30 g with USB extender (Lumenier) |
| Interfaces | 7 UARTs, 1 CAN, 2 I2C; 8-36 V (3-8S) input |
Who makes it
MakerKunming Jingwei Technology Co., Ltd (Matek Systems)
Based inChina
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
Loading duty data…
Compliance
| HTS classification | unknown |
|---|---|
| NDAA | non-compliant |
| Blue UAS | not-listed |
| FCC | n/a |
| Notes | Manufacturer per distributor fpv24: Kunming Jingwei Technology Co., Ltd, Kunming, China. Official mateksys.com page no longer lists V3; Lumenier shows out of stock, fpv24 'no longer available'. IMU models differ between distributors. NDAA FY2020 §848 bars DoD use of UAS whose flight controllers, radios, data transmission devices, cameras, gimbals, ground control systems or operating software are made in a covered foreign country (incl. China) or by an entity domiciled there; FY2024 §1823 (American Security Drone Act) extends this to federal agencies. |
Equivalents from other makers
Sources
- https://fpv24.com/en/matek-systems/mateksys-h743-wing-v3-flight-controllerMPN, specs, manufacturer
- https://www.lumenier.com/products/mateksys-h743-wing-v3-flight-controllerUSD price, weight
Record confidence: REPORTED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
