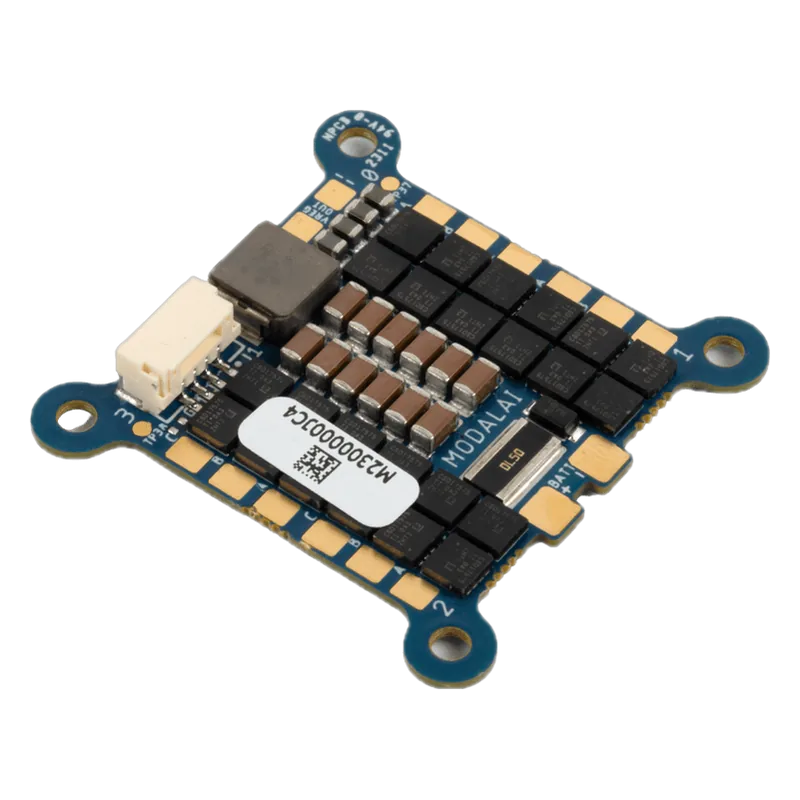

ModalAI VOXL ESC Mini 4-in-1 (M0129)
ModalAI · MPN MDK-M0129-65-01 · Maglev ID dr-modalai-voxl-esc-mini
US Made in United States Blue UAS VERIFIED
5.9 g closed-loop-RPM 4-in-1 ESC with built-in power module for VOXL 2 / VOXL 2 Mini drones under 750 g.
Specifications
| Continuous current | unknown |
|---|---|
| Cells (LiPo) | 2-6S (M0129-63/-65); 2-4S (M0129-3/-5) |
| Protocol | Bi-directional UART up to 2 Mbit/s (RPM control); PWM via test points |
| Weight | 5.87 g without wires |
Who makes it
MakerModalAI
Based inUnited States
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
37.5%
TW
10%
VN
12.5%
IN
10%
JP
12.5%
KR
12.5%
DE
10%
MX
10%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8504.40.40.00 typical, not a ruling |
|---|---|
| NDAA | compliant |
| Blue UAS | listed |
| FCC | n/a |
| Notes | DCMA Blue UAS list entry 'VOXL 4IN1 ESC' (ModalAI, 2025-05-28); ModalAI's page says this M0129 board is the one listed under that name. ModalAI states NDAA-compliant, assembled in the USA. Continuous current per motor not stated (sized for vehicles <750 g). |
Equivalents from other makers
Works with
Sources
- https://www.modalai.com/products/voxl-esc-minispecs, MPN, price, Blue listing name
- https://bluelist.dcma.mil/gsp?id=gsp_indexDCMA Blue UAS list (Cleared List + Framework, transitioned from DIU), 'Blue List Products' table read 2026-10-29: entry 'ModalAI / VOXL 4IN1 ESC'
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
