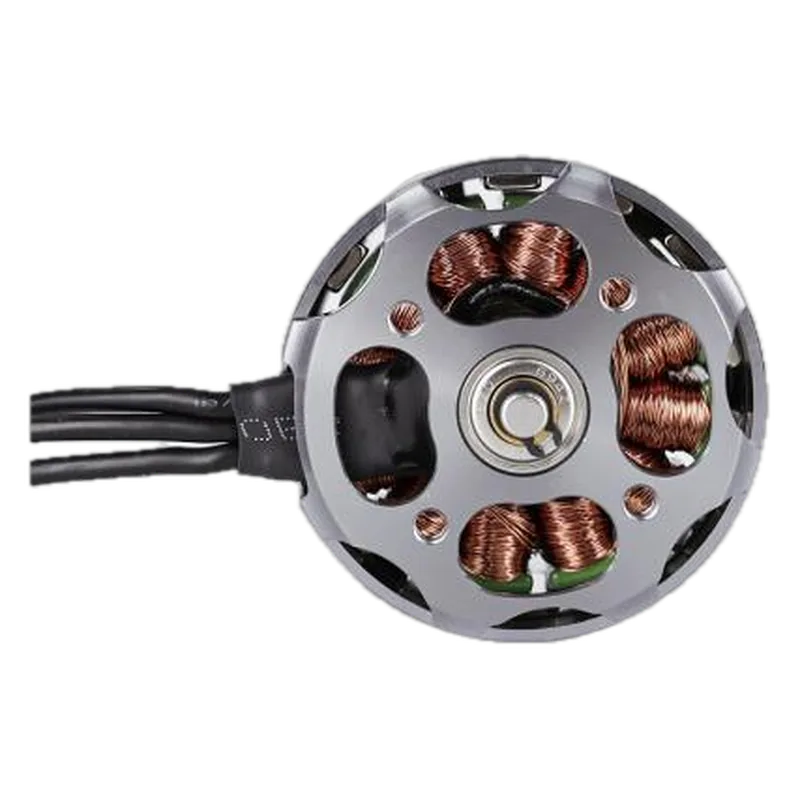

T-MOTOR MN3510 KV700 (Navigator)
T-MOTOR · Maglev ID dr-tmotor-mn3510-kv700
CN Maker in China, factory not confirmed unknown VERIFIED
3-4S Navigator-series motor for ~13-15 in prop multirotors and VTOL.
Specifications
| KV | 700 |
|---|---|
| Stator | 35 x 10 mm, 12N14P |
| Max thrust | 1800 g (13x4.4 CF, 14.8 V, 100%) in maker test table; family 'max thrust 2.2 kg' |
| Weight | 97 g w/o cables (118 g with) |
| Cells (LiPo) | 3-4S |
Who makes it
MakerT-MOTOR
Based inChina
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
41.5%
TW
10%
VN
16.5%
IN
14%
JP
12.5%
KR
12.5%
DE
10%
MX
14%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8501.31.40.00 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | not-listed |
| FCC | n/a |
| Notes | Max continuous 25 A (180 s). T-MOTOR matching guide: P15x5 prop + Air 20A ESC. Motors and props are not among the critical components enumerated in NDAA FY2020 §848, so no NDAA claim is made either way; check your program's own sourcing rules. T-MOTOR head office is in Nanchang, China (shop.tmotor.com about page). |
Equivalents from other makers
Sources
- https://store.tmotor.com/product/mn3510-motor-navigator-type.htmlspecs, test data, price, matching guide
- https://shop.tmotor.com/pages/about-tmotorT-MOTOR head office in Nanchang, China
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
