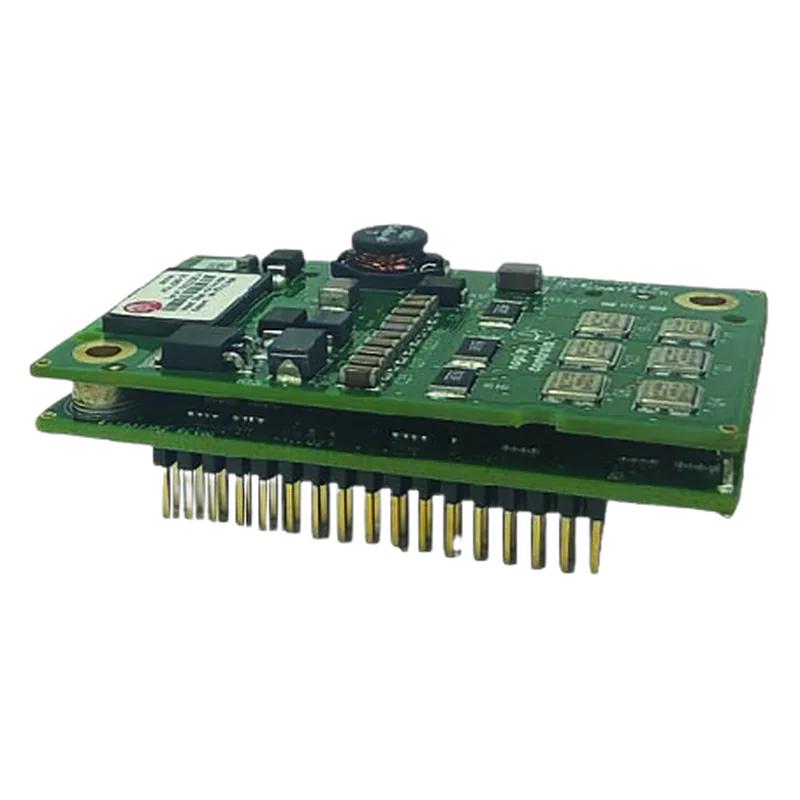

Copley Accelnet Micro Module ACK-090-08
Copley Controls · MPN ACK-090-08 · Maglev ID mo-copley-ack-090-08
US Maker in United States, factory not confirmed unknown VERIFIED
PCB-mount CANopen digital servo drive (64 x 41 mm) for brush or brushless motors; the 90 V / 4 A-continuous model of the Accelnet Micro Module family.
Specifications
| Bus voltage | 20-90 V (transformer-isolated) |
|---|---|
| Continuous current | 4 A (2.8 A RMS) |
| Peak current | 8 A (5.7 A RMS) for 1 s |
| Interface | CANopen/DeviceNet, RS232, step/dir, +/-10 V analog, PWM |
| Feedback | Digital quad A/B encoder, secondary encoder, digital Halls, resolver (-R option) |
| Continuous output power | 0.36 kW |
| Dimensions | 64 x 41 x 21 mm |
| Family models | ACK-055-06, ACK-055-10, ACK-090-04, ACK-090-08 |
Who makes it
MakerCopley Controls
Based inUnited States
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
37.5%
TW
10%
VN
12.5%
IN
10%
JP
12.5%
KR
12.5%
DE
10%
MX
10%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8504.40.40.00 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
| Notes | Datasheet read from a reseller-hosted copy of Copley's PDF; revision date not shown on pages read. Check current status with Copley. |
Equivalents from other makers
Works with
Sources
- https://s3.amazonaws.com/www.motionusa.com/copley/copley_controls_Accelnet_Micro_Module.pdfCopley datasheet (mirrored on a reseller S3): model table, input power, current, interfaces, feedback, dimensions
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
