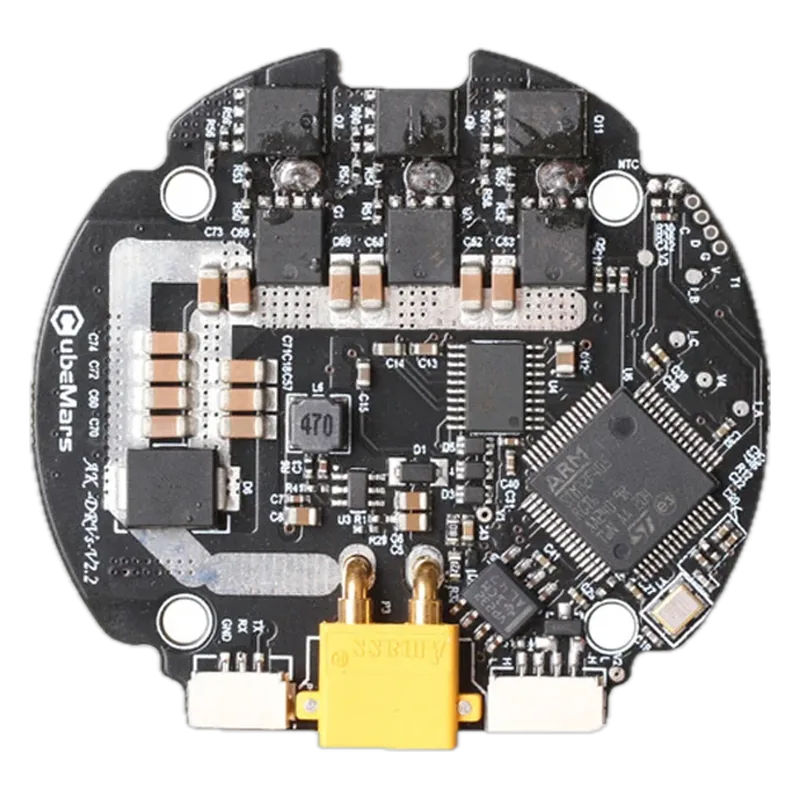

CubeMars Driver Board V2.2 (AK60-6 V1.1)
CubeMars · MPN Driver-board-V2.2 · Maglev ID mo-cubemars-driver-board-v2-2
CN Maker in China, factory not confirmed unknown VERIFIED
24 V CAN/UART FOC driver board for the CubeMars AK60-6 V1.1 actuator; servo and MIT modes.
Specifications
| Supply voltage | 24 V rated, 28 V max |
|---|---|
| Continuous current | 10 A |
| Peak current | 30 A |
| Interface | CAN, UART (serial) |
| Feedback | Onboard 14-bit single-turn absolute encoder |
| Size | 54 x 50 mm |
Who makes it
MakerCubeMars (T-Motor)
Based inChina
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
37.5%
TW
10%
VN
12.5%
IN
10%
JP
12.5%
KR
12.5%
DE
10%
MX
10%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8504.40.40.00 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Equivalents from other makers
Sources
- https://store.cubemars.com/products/driver-board-v2-2specs (rated 10 A, max 30 A in spec list; intro text says 10 A peak), price
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
