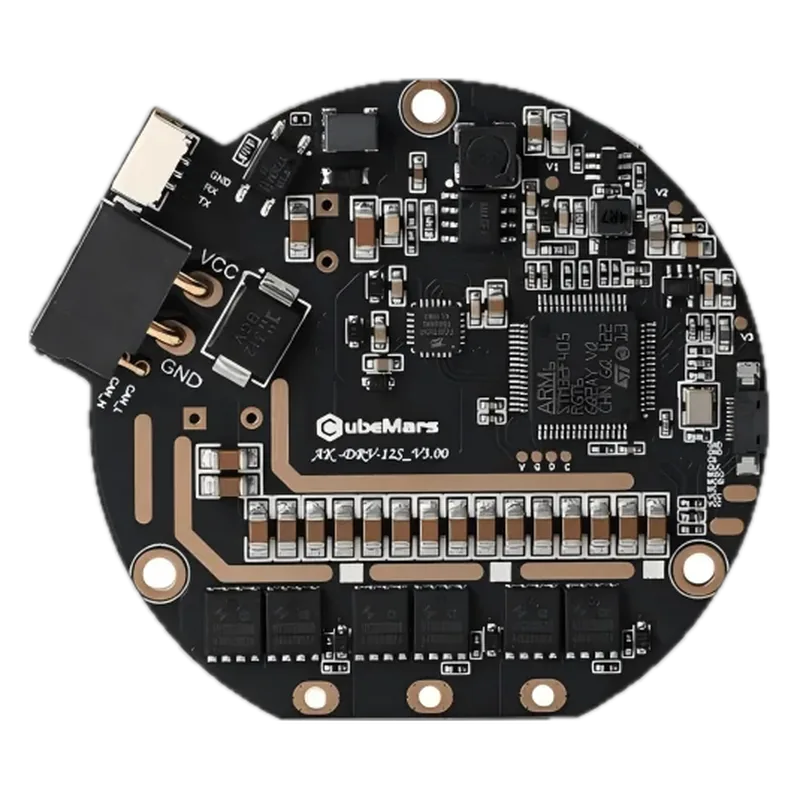

CubeMars Driver Board V3.0, Big (AK70-9 / AK80-9 V3.0 / AK10-9 V3.0)
CubeMars · MPN AJT01010027 · Maglev ID mo-cubemars-driver-board-v3-0-big
CN Maker in China, factory not confirmed unknown VERIFIED
Big-size (63 x 57 mm) CubeMars V3.0 driver for AK80-9/AK10-9 V3.0 class actuators, 20 A rated / 60 A peak at 48 V.
Specifications
| Supply voltage | 48 V rated, 18-52 V allowed |
|---|---|
| Continuous current | 20 A |
| Peak current | 60 A |
| Interface | CAN 1 Mbps, UART (serial) |
| Feedback | 21-bit single-turn inner-loop encoder; 15-bit outer-loop (output) encoder on dual-encoder models |
| Size | 63 x 57 mm |
Who makes it
MakerCubeMars (T-Motor)
Based inChina
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
37.5%
TW
10%
VN
12.5%
IN
10%
JP
12.5%
KR
12.5%
DE
10%
MX
10%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8504.40.40.00 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Equivalents from other makers
Sources
- https://rcdrone.top/products/cubemars-driver-board-v3-0spec table, price
- https://store.cubemars.com/products/driver-boardofficial price and SKU
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
