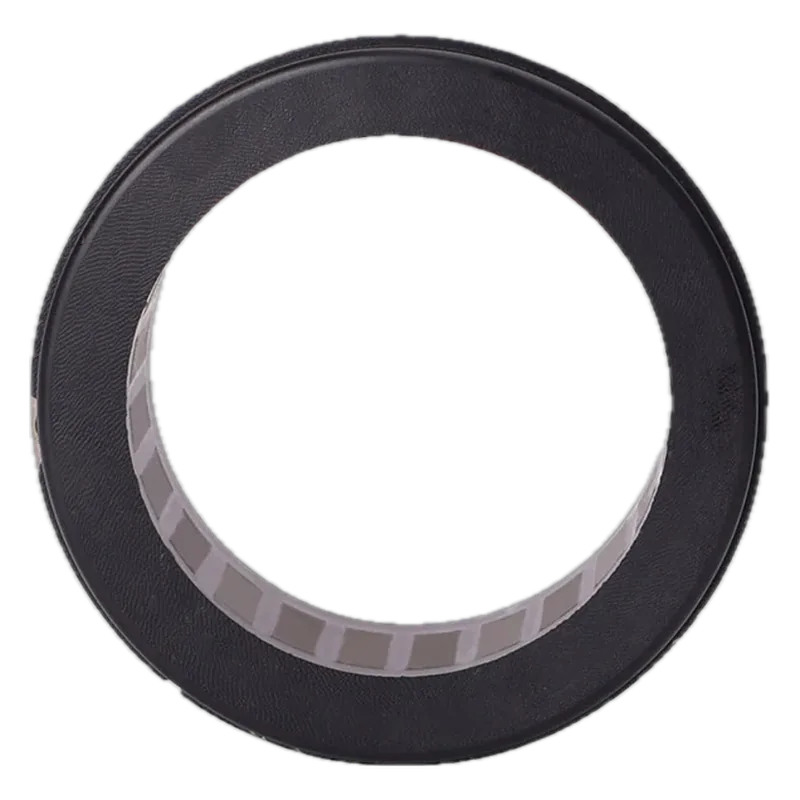

CubeMars RI75-PH KV70 Potted Frameless Torque Motor
CubeMars · MPN RI75-PH KV70 (with connector) · Maglev ID mo-cubemars-ri75-ph-kv70
CN Maker in China, factory not confirmed unknown VERIFIED
Potted (epoxy-encapsulated) 70 mm frameless inrunner with integrated Hall and temperature sensing, for higher thermal margin in mid-size joints.
Specifications
| Peak torque | 3.8 Nm |
|---|---|
| Continuous torque | 1.2 Nm rated |
| Outer diameter | 70 mm (listed as Ф70 x 36.2 mm, connector model) |
| Axial length | 36.2 mm |
| Voltage | 48 V |
| Mass | 348 g |
| KV | 70 rpm/V |
| Rated current | 7.28 A |
| Peak current | 24.2 A |
Who makes it
MakerCubeMars (Sanrui Intelligent / T-Motor group)
Based inChina
RoleBrand owner
CubeMars and T-MOTOR are one manufacturer group (Sanrui Intelligent, Nanchang, Jiangxi), in Maglev's actuator benchmark pool as CN002; contact on file is info@cubemars.com.
Landed cost in the US
CN
41.5%
TW
10%
VN
16.5%
IN
14%
JP
12.5%
KR
12.5%
DE
10%
MX
14%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8501.31.40.00 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Works with
Sources
- https://www.cubemars.com/product/ri60-kv120-frameless-inrunner-torque-motor.htmlseries comparison table: rated/peak torque, current, mass, diameter x length
- https://store.cubemars.com/products/ri75-ph.jsUSD price and variant availability (Shopify product JSON)
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
