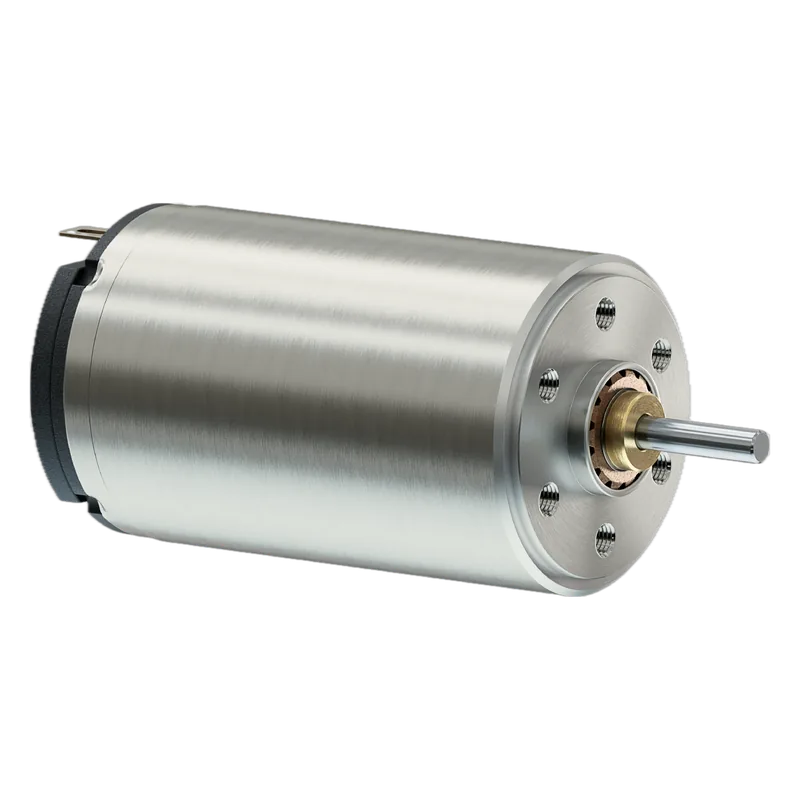

FAULHABER 1524 T 012 SR coreless DC micromotor
FAULHABER · MPN 1524T012SR · Maglev ID mo-faulhaber-1524t012sr
DE Maker in Germany, factory not confirmed unknown VERIFIED
15 mm coreless brushed DC motor, small enough for finger joints and compact grippers.
Specifications
| Diameter | 15 mm |
|---|---|
| Nominal voltage | 12 V |
| Rated torque (continuous) | 2.82 mNm |
| No-load speed | 9,850 rpm |
| Output power (datasheet headline) | 5 W |
| Mass | 18 g |
| Length | 23.8 mm |
| Stall torque | 6.92 mNm |
Who makes it
MakerFAULHABER
Based inGermany
RoleBrand owner
Shenzhen hollow-cup and BLDC makers in Maglev's directory (RBT Motor, Constar, Hengdrive, Wanzhida) list custom motors; none benchmarked against this part.
Landed cost in the US
CN
41.9%
TW
10%
VN
16.9%
IN
14.4%
JP
12.5%
KR
12.5%
DE
10%
MX
14.4%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8501.10.40.40 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Equivalents from other makers
Sources
- https://eshop.faulhaber.com/en/1524-...-SR/Serie-1524-...-SRspecs for 1524T012SR (Part No. 1524.27500), 3D-CAD zip, delivery on request
- https://eshop.faulhaber.com/media/5a/58/21/1775629664/EN_1524_SR_DFF.pdfdatasheet table
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
