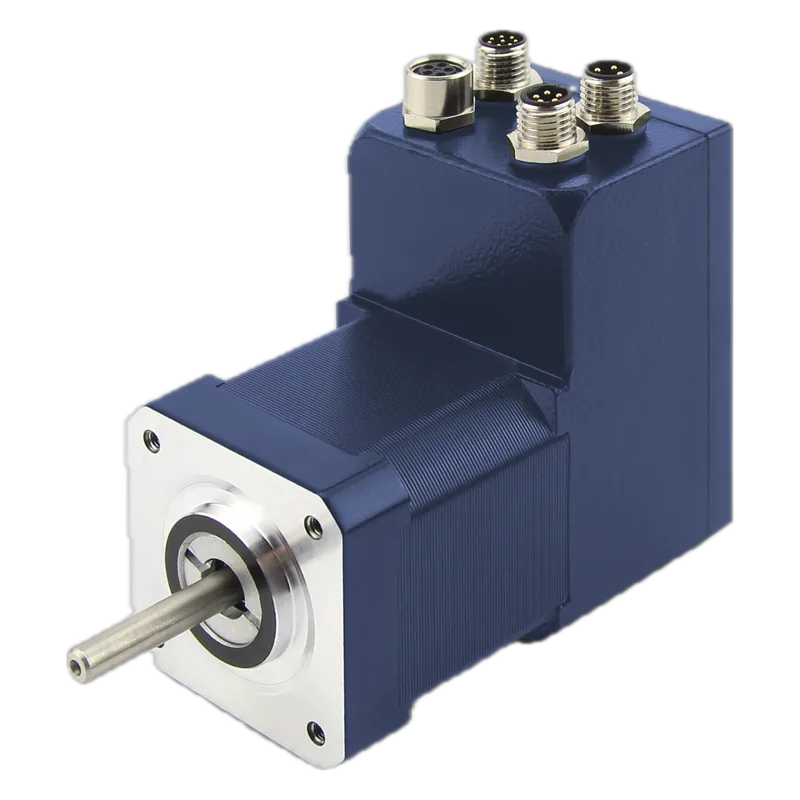

PD2-C Plug & Drive IP65 NEMA 17 Integrated Stepper, CANopen (PD2-C411L18-E-65-08)
Nanotec · MPN PD2-C411L18-E-65-08 · Maglev ID mo-nanotec-pd2-c411l18-e-65-08
DE Maker in Germany, factory not confirmed unknown VERIFIED
IP65 NEMA 17 stepper with integrated controller/drive, single-turn absolute encoder and CANopen on M8 connectors; for wet or dusty robot axes.
Specifications
| Frame size | NEMA 17 (42.3 mm) |
|---|---|
| Holding torque | 0.5 N·m |
| Rated current | 1.8 A RMS (3 A RMS peak) |
| Step angle | 1.8° ±5% |
| Body length | 74.4 mm |
| Integrated driver | Yes, controller/drive, CANopen |
| Supply voltage | 12-48 VDC |
| Interface | CANopen; 4 DI, 1 AI, 2 DO |
| Encoder | single-turn absolute, 1024 CPR |
| IP rating | IP65 (except shaft output) |
| Mass | 0.5 kg |
Who makes it
MakerNanotec Electronic
Based inGermany
RoleBrand owner
Shenzhen stepper makers in Maglev's directory: Stonker Motor and Wanzhida (stepper motors), Zhongling (integrated step motors). None benchmarked against this part.
Landed cost in the US
CN
41.9%
TW
10%
VN
16.9%
IN
14.4%
JP
12.5%
KR
12.5%
DE
10%
MX
14.4%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8501.10.40.40 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Equivalents from other makers
Sources
- https://www.nanotec.com/us/en/products/2348-pd2-c411l18-e-65-08rated/peak current, voltage, I/O, encoder, price $477.70 USD in page data, STP download
- https://www.nanotec.com/fileadmin/files/Datenblaetter/Plug_Drive/PD2-C-IP/PD2-C411L18-E-65-08.pdfdrawing/spec sheet: 0.5 N·m, 1.8 A, 12-48 V, 74.4 mm, 0.5 kg, IP65 note
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
