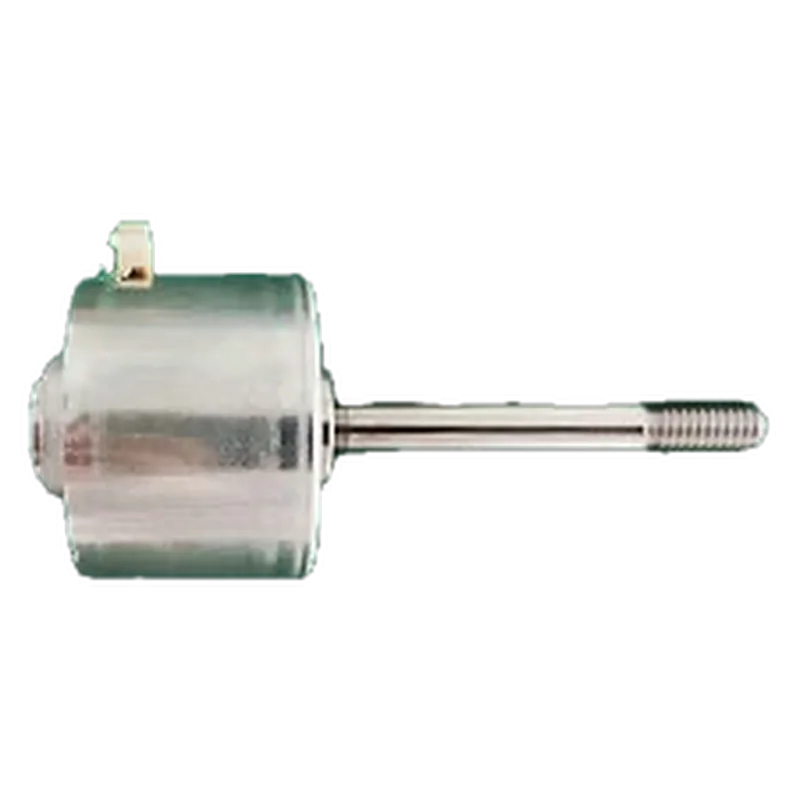

Nidec 24M Series brushless DC motor
Nidec · Maglev ID mo-nidec-24m-series
JP Maker in Japan, factory not confirmed unknown VERIFIED
32 mm, 24.5 mm-long 12-pole BLDC from Nidec's small precision line; a low-cost option for small actuators.
Specifications
| Outer diameter | 32 mm |
|---|---|
| Rated voltage | 12 V (range 3.7-28 V) |
| Rated torque | 20 mNm |
| No-load speed | about 5,500 rpm |
| Output power | 7.5 W |
| Mass | 87 g |
| Length | 24.5 mm |
| Rated speed | 3,500 rpm |
Who makes it
MakerNidec
Based inJapan
RoleBrand owner
Shenzhen hollow-cup and BLDC makers in Maglev's directory (RBT Motor, Constar, Hengdrive, Wanzhida) list custom motors; none benchmarked against this part.
Landed cost in the US
CN
41.9%
TW
10%
VN
16.9%
IN
14.4%
JP
12.5%
KR
12.5%
DE
10%
MX
14.4%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8501.10.40.40 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Sources
- https://www.nidec.com/en/products/small-precision-motors/brushless-dc-motors/brushless-dc-motors/NCJ-24M/series specs (no model number, no price)
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
