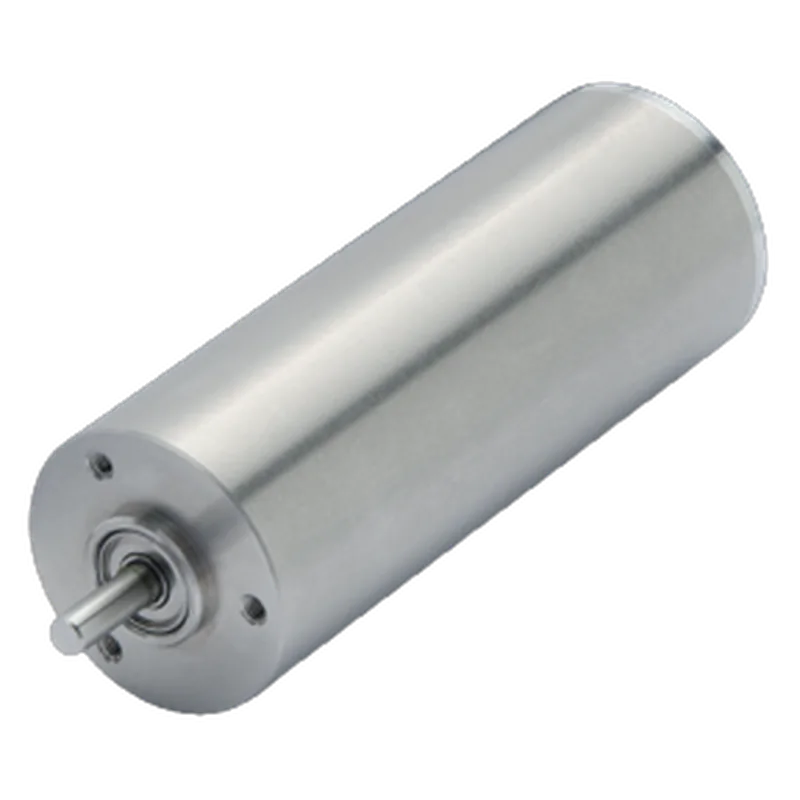

Portescap 22ECS60 Ultra EC brushless slotless motor (coil 16)
Portescap · Maglev ID mo-portescap-22ecs60-10b-16
US Maker in United States, factory not confirmed unknown VERIFIED
22 mm, 180 W slotless 2-pole BLDC for very high speed; picked for compact high-power drives behind a reduction.
Specifications
| Diameter | 22 mm |
|---|---|
| Nominal voltage | 24 V |
| Max continuous torque | 45 mNm |
| No-load speed | 47,000 rpm |
| Max continuous mechanical power (25 C) | 180 W |
| Weight | 140 g |
| Body length (drawing) | 60 mm |
| Max motor speed | 60,000 rpm |
Who makes it
MakerPortescap
Based inUnited States
RoleBrand owner
Shenzhen hollow-cup and BLDC makers in Maglev's directory (RBT Motor, Constar, Hengdrive, Wanzhida) list custom motors; none benchmarked against this part.
Landed cost in the US
Loading duty data…
Compliance
| HTS classification | unknown |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
| Notes | portescap.com, Digi-Key and RS blocked automated fetch. MPN form '22ECS60 10B 16 01' from distributor search snippet; datasheet shows pattern '22ECS60 10B-xxx.01'. |
Sources
- https://datasheet.sic-components.com/specifications_22ecs60.pdfPortescap 22ECS60 datasheet (maker document, third-party mirror): coil 16 column
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
