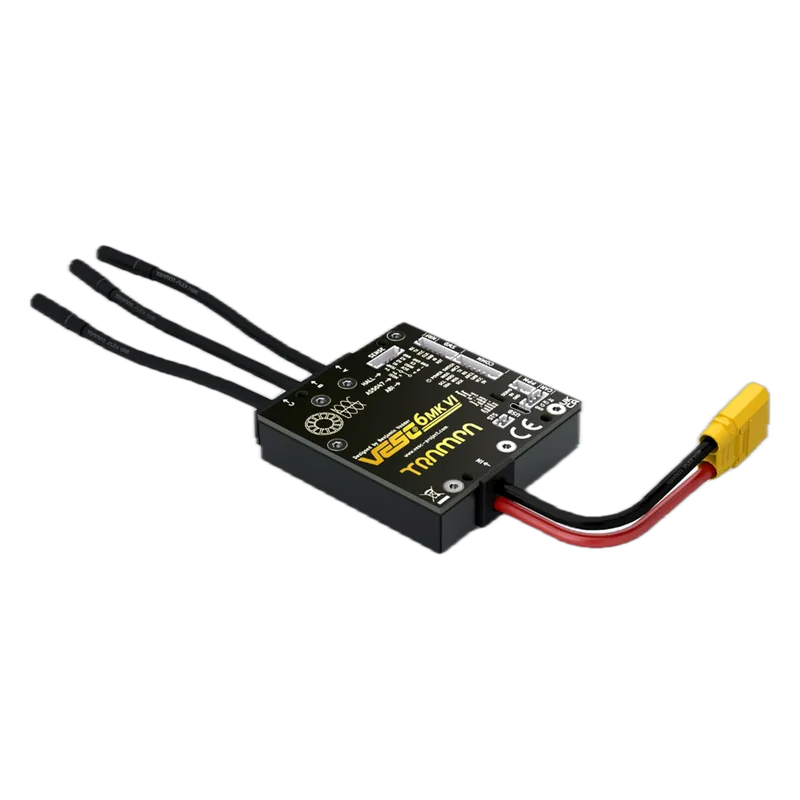

Trampa VESC 6 MkVI
Trampa Boards · Maglev ID mo-trampa-vesc6-mkvi
GB Maker in United Kingdom, factory not confirmed unknown VERIFIED
The reference VESC 6 hardware from Trampa (with built-in IMU, three-phase shunts, CAN/UAVCAN), for 3-12S robot and vehicle drives.
Specifications
| Bus voltage | 11.1-60 V (3-12S LiPo) |
|---|---|
| Continuous current | 80 A |
| Peak current | 120 A |
| Interface | USB, CAN, UAVCAN, 2x UART, SPI, I2C; inputs PPM, analog, NRF |
| Feedback | ABI, Hall, AS5047 and other encoders, or sensorless; onboard IMU |
| Mass | 232 g (boxed, with cables) |
| Box dimensions | 75 x 70 x 18 mm |
| List price (GBP) | £185 each (tax treatment not stated) |
Who makes it
MakerTrampa Boards Ltd
Based inUnited Kingdom
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
37.5%
TW
10%
VN
12.5%
IN
10%
JP
12.5%
KR
12.5%
DE
10%
MX
10%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8504.40.40.00 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Equivalents from other makers
Sources
- https://trampaboards.com/vesc-6-mkvi-the-amazing-trampa-vesc-6-mkvi-gives-maximum-power-p-27536.htmltechnical data, ports, mass, box size, price £185 (GBP only, not converted)
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
