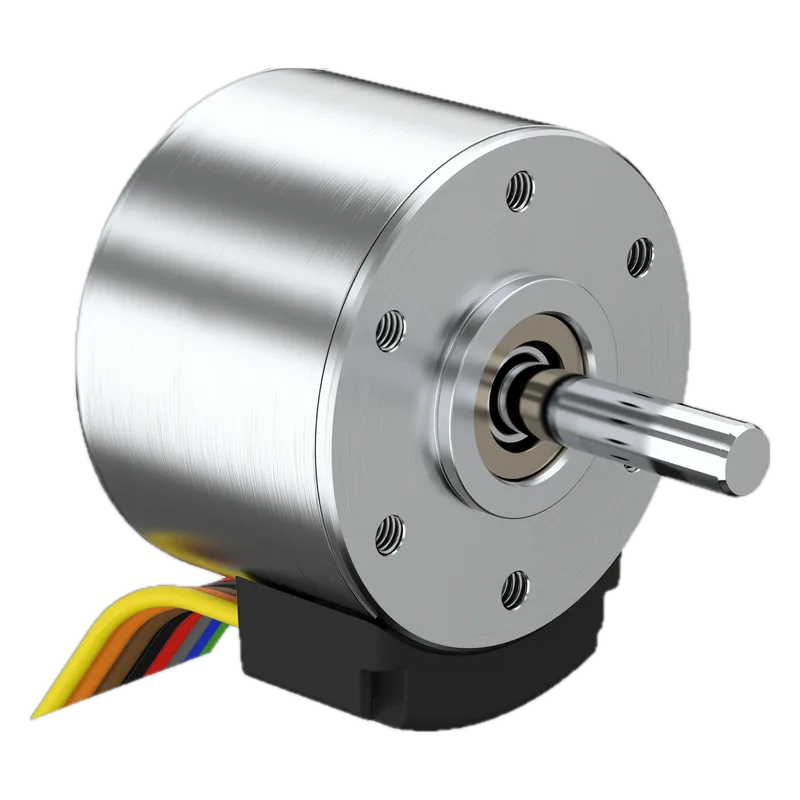

FAULHABER 2214 S 024 BXT H brushless flat motor
FAULHABER · MPN 2214S024BXTH · Maglev ID mo-faulhaber-2214s024bxth
DE Maker in Germany, factory not confirmed unknown VERIFIED
22 mm, 14.8 mm-long housed external-rotor BLDC; a short, high-torque choice for hand and wrist joints.
Specifications
| Diameter | 22 mm |
|---|---|
| Nominal voltage | 24 V |
| Rated torque (continuous) | 9.7 mNm |
| No-load speed | 6,970 rpm |
| Output power (datasheet headline) | 6 W |
| Mass | 28.9 g |
| Length | 14.8 mm |
| Starting torque | 29.6 mNm |
| Pole pairs | 7 |
Who makes it
MakerFAULHABER
Based inGermany
RoleBrand owner
Shenzhen hollow-cup and BLDC makers in Maglev's directory (RBT Motor, Constar, Hengdrive, Wanzhida) list custom motors; none benchmarked against this part.
Landed cost in the US
CN
41.9%
TW
10%
VN
16.9%
IN
14.4%
JP
12.5%
KR
12.5%
DE
10%
MX
14.4%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8501.10.40.40 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Equivalents from other makers
Sources
- https://eshop.faulhaber.com/en/2214-...-BXT-H/Serie-2214-...-BXT-Hvariants, specs (2214S024BXTH 6862 shown), 3D-CAD zip, delivery on request; price tiers shown but empty
- https://eshop.faulhaber.com/media/03/e2/da/1775629954/EN_2214_BXTH_DFF.pdfdatasheet table for 024 BXT H
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
