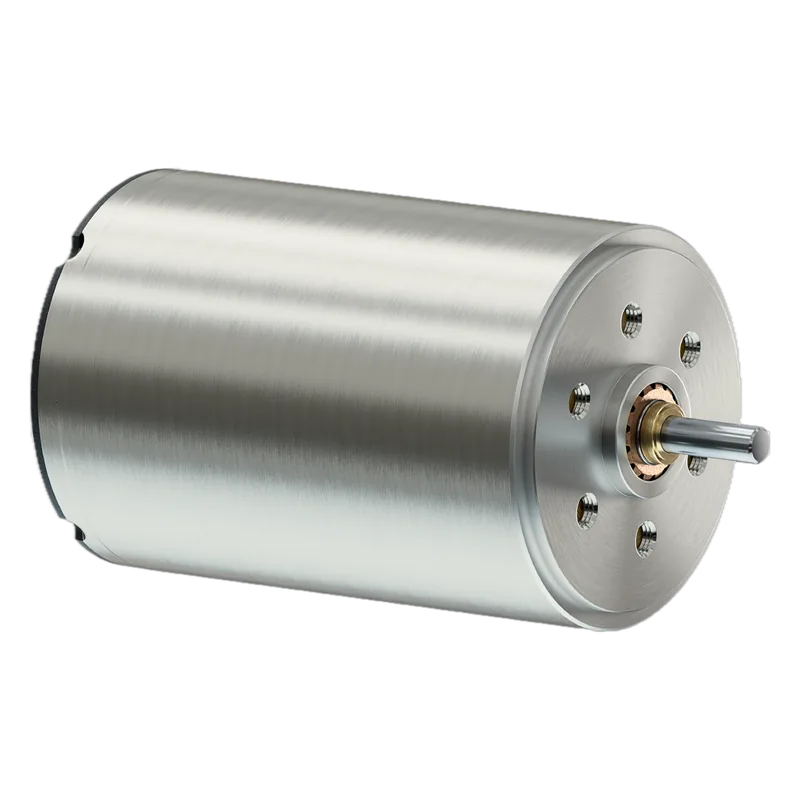

FAULHABER 2232 U 024 SR coreless DC micromotor
FAULHABER · MPN 2232U024SR · Maglev ID mo-faulhaber-2232u024sr
DE Maker in Germany, factory not confirmed unknown VERIFIED
22 mm coreless brushed DC motor with precious-metal commutation, a common drive for grippers and small manipulators.
Specifications
| Diameter | 22 mm |
|---|---|
| Nominal voltage | 24 V |
| Rated torque (continuous) | 10 mNm |
| No-load speed | 7,150 rpm |
| Output power (datasheet headline) | 8.37 W |
| Mass | 62 g |
| Length | 32.2 mm |
| Stall torque | 46.5 mNm |
Who makes it
MakerFAULHABER
Based inGermany
RoleBrand owner
Shenzhen hollow-cup and BLDC makers in Maglev's directory (RBT Motor, Constar, Hengdrive, Wanzhida) list custom motors; none benchmarked against this part.
Landed cost in the US
CN
41.9%
TW
10%
VN
16.9%
IN
14.4%
JP
12.5%
KR
12.5%
DE
10%
MX
14.4%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8501.10.40.40 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Equivalents from other makers
Sources
- https://eshop.faulhaber.com/en/2232-...-SR/Serie-2232-...-SRseries page, variants list, 3D-CAD zip, delivery 'on request', no price
- https://eshop.faulhaber.com/media/0b/2f/4c/1775629680/EN_2232_SR_DFF.pdfdatasheet table for 024 SR winding
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
