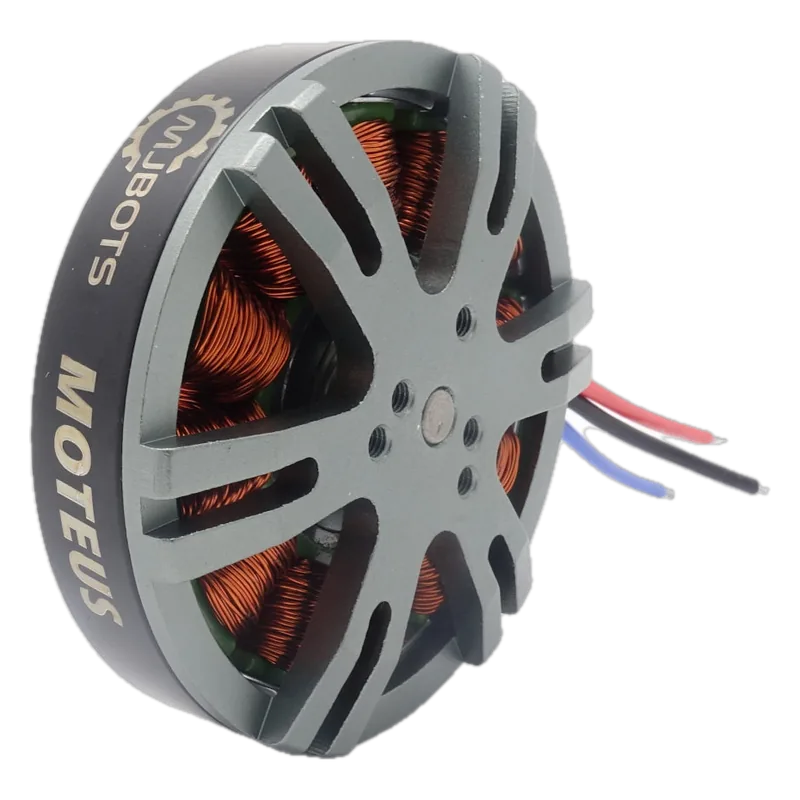

mjbots mj5208 Brushless Motor
mjbots · MPN mj5208 · Maglev ID mo-mjbots-mj5208
US Maker in United States, factory not confirmed unknown VERIFIED
63 mm 5208-size 330KV outrunner used in the moteus devkit; a standard pick for small QDD legged-robot and arm joints.
Specifications
| KV | 330 |
|---|---|
| Max voltage | unknown |
| Peak torque | 1.7 Nm |
| Outer diameter | 63 mm |
| Mass | 193 g with wires |
| Length | 25 mm |
| Peak power | 600 W |
| Maximum RPM | 7500 |
Who makes it
Makermjbots Robotic Systems
Based inUnited States
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
Loading duty data…
Compliance
| HTS classification | unknown |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
| Notes | Page links an EC declaration of conformity. 3D model is community-contributed (A360 link). |
Equivalents from other makers
Works with
Sources
- https://mjbots.com/products/mj5208specs + price $74 (Shopify product feed mj5208.json); page links 2D drawing and 3D model
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
