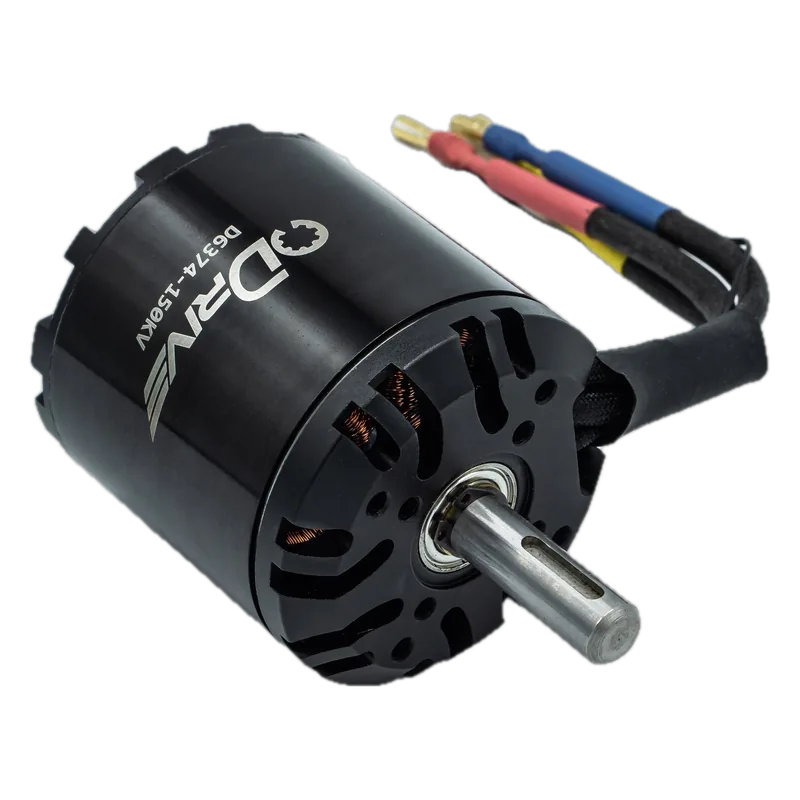

ODrive D6374 150KV Dual Shaft Motor
ODrive Robotics · MPN D6374 · Maglev ID mo-odrive-d6374-150kv
US Maker in United States, factory not confirmed unknown VERIFIED
63 mm-class 150KV dual-shaft outrunner, ODrive's higher-torque pick for belt/planetary robot joints and e-skate-style drives.
Specifications
| KV | 150 rpm/V |
|---|---|
| Max voltage | unknown |
| Peak torque | not stated; Kt 0.055 Nm/A x 90 A 3-s peak current (derived, not a maker rating) |
| Outer diameter | unknown |
| Mass | unknown |
| Torque constant | 0.055 Nm/A |
| Pole pairs | 7 |
| Phase resistance (phase-neutral) | 39 mΩ |
| Phase inductance (phase-neutral) | 24 µH |
| Continuous current, free air | 50 A |
| Peak current (3 s) | 90 A |
| Thermistor | NTC 10k B3435 |
Who makes it
MakerODrive Robotics
Based inUnited States
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
Loading duty data…
Compliance
| HTS classification | unknown |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Equivalents from other makers
Works with
Sources
- https://shop.odriverobotics.com/products/odrive-custom-motor-d6374-150kvprice + SKU (Shopify product feed, collections/motors/products.json)
- https://docs.odriverobotics.com/v/latest/hardware/odrive-motors.html#d6374-150kvmotor characteristics table (KV, Kt, R, L, currents)
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
