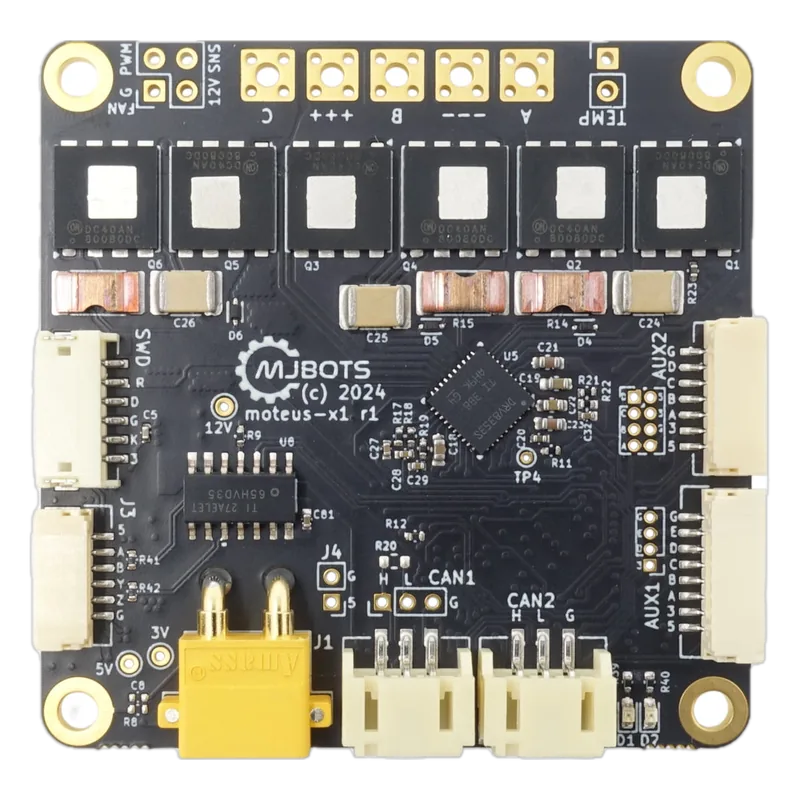

moteus-x1 Brushless Servo Controller
mjbots · MPN moteus-x1 · Maglev ID mo-moteus-x1
US Maker in United States, factory not confirmed unknown VERIFIED
56 x 56 mm higher-current moteus (62 A continuous with cooling) aimed at low-cost high-torque servo systems, same CAN-FD ecosystem.
Specifications
| Bus voltage | 10-54 V (<=12S) |
|---|---|
| Continuous current | 25 A / 62 A phase (without / with thermal management) |
| Peak current | 120 A phase |
| Interface | 5 Mbps CAN-FD; RS422; aux SPI/UART/I2C |
| Feedback | Onboard absolute magnetic encoder; aux SPI, quadrature, Hall, I2C encoders |
| Peak electrical power | 1.3 kW @ 36 V |
| Mass | 23.7 g |
| Dimensions | 56 x 56 x 10 mm |
Who makes it
Makermjbots Robotic Systems
Based inUnited States
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
37.5%
TW
10%
VN
12.5%
IN
10%
JP
12.5%
KR
12.5%
DE
10%
MX
10%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8504.40.40.00 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Equivalents from other makers
Sources
- https://mjbots.com/products/moteus-x1price + full spec list (also via Shopify products.json)
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
