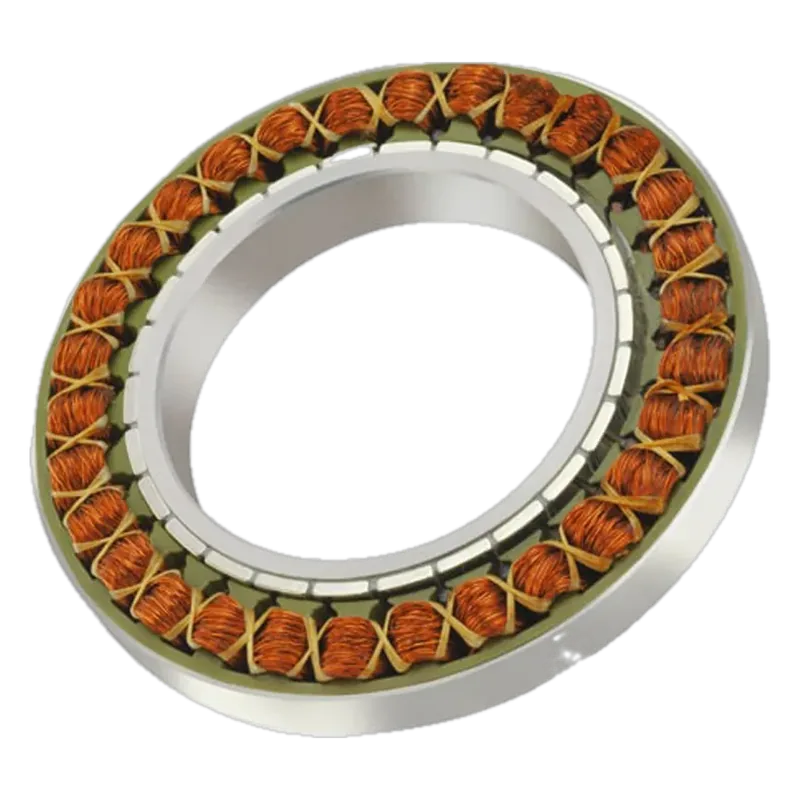

Celera Motion Omni+ OPH-060-013-B Frameless Motor
Celera Motion (Novanta) · MPN OPH-060-013-B · Maglev ID mo-celera-omni-plus-oph-060-013-b
US Maker in United States, factory not confirmed unknown VERIFIED
60 mm low-cogging frameless kit sized to pair with strain-wave gears in robot joints; Hall version, 48 V winding B.
Specifications
| Peak torque | 1.24 Nm max torque |
|---|---|
| Continuous torque | 0.474 Nm |
| Outer diameter | 60 mm stator OD |
| Axial length | 27.4 mm stator length (12.5 mm stack); rotor 17.5 mm |
| Voltage | 48 VDC design voltage |
| Mass | 0.19 kg total (estimated; stator 0.12, rotor 0.07) |
| Rotor ID | 31.01 mm |
| Rated speed | 5900 rpm |
| Continuous current | 7.97 A |
Who makes it
MakerCelera Motion (Novanta)
Based inUnited States
RoleBrand owner
Celera Motion publishes applications-engineering contacts for precision frameless motors (per Maglev's US sourcing research); current plant and lead time still to confirm.
Landed cost in the US
CN
41.5%
TW
10%
VN
16.5%
IN
14%
JP
12.5%
KR
12.5%
DE
10%
MX
14%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8501.31.40.00 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Equivalents from other makers
Works with
Sources
- https://novanta.com/robotics-automation/product/omni-series-frameless-motor-2/60 mm x 12.5 mm stack Halls model: OD, rotor ID, lengths, mass; quote only
- https://novanta.com/robotics-automation/wp-content/uploads/sites/3/2026/03/Omni__Motors_Data_Sheet_English.pdfOmni+ datasheet DS-2001: OPH-060-013 winding B torque/current/voltage
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
