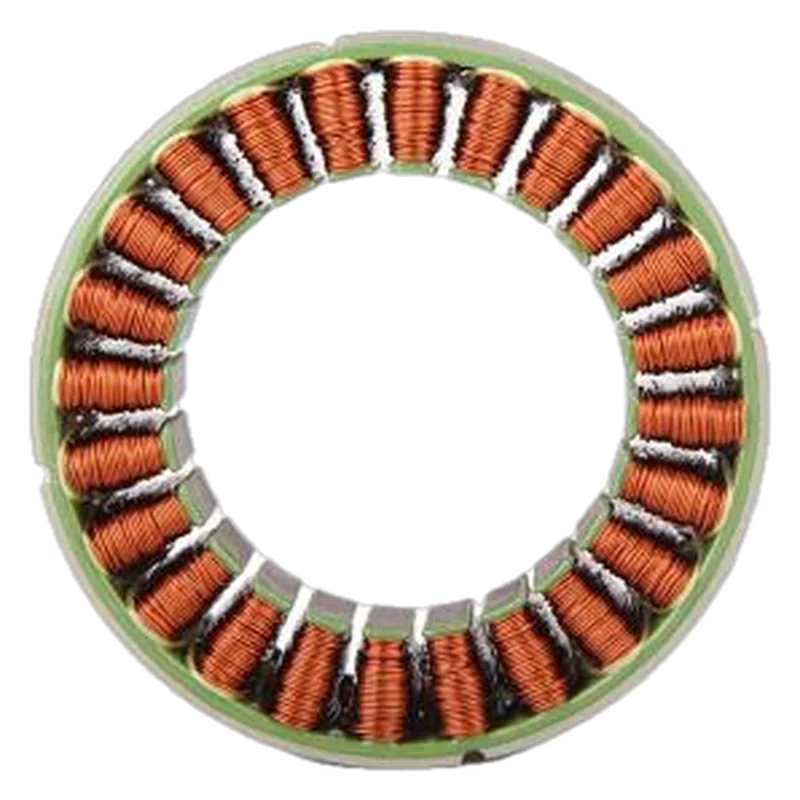

CubeMars RI60 KV120 Frameless Inrunner Torque Motor
60 mm frameless inrunner kit with 30 mm bore for small robot joints and exoskeletons; sold with or without Hall sensor.
Specifications
| Peak torque | 1.63 Nm |
|---|---|
| Continuous torque | 0.57 Nm rated |
| Outer diameter | 60 mm |
| Axial length | 23 mm overall |
| Voltage | 24/36/48 V |
| Mass | 155.9 g |
| Through bore | 30 mm |
| KV | 120 rpm/V |
| Rated current | 5.6 A |
Who makes it
CubeMars and T-MOTOR are one manufacturer group (Sanrui Intelligent, Nanchang, Jiangxi), already in Maglev's actuator benchmark pool as CN002; contact on file is info@cubemars.com. Ask about custom windings and which country each part is made in.
Landed cost in the US
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8501.31.40.00 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Equivalents from other makers
Works with
Sources
- https://www.cubemars.com/product/ri60-kv120-frameless-inrunner-torque-motor.htmlspecs, STEP/2D drawing downloads, $98.90
- https://store.cubemars.com/products/ri60price $98.90, sold out
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
