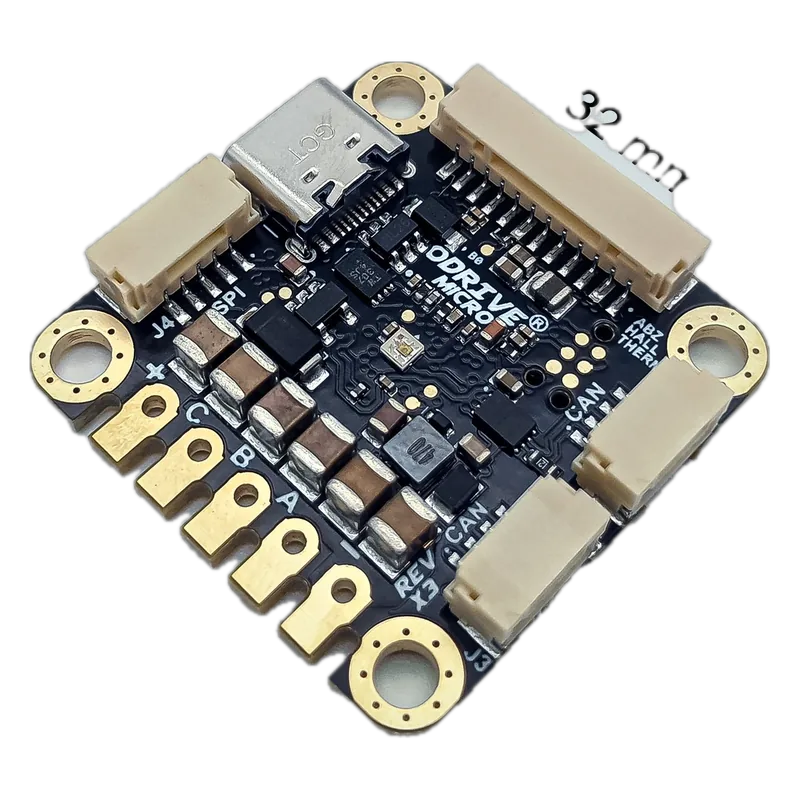

ODrive Micro 32 mm BLDC Controller
ODrive Robotics · MPN ODMICRO · Maglev ID mo-odrive-micro
US Maker in United States, factory not confirmed unknown VERIFIED
32 x 32 mm, 100 W ODrive with onboard 12-bit magnetic encoder and CAN-FD for back-of-motor mounting on small gimbal-class actuators.
Specifications
| Bus voltage | 10-31 V (12-24 V typ.; 28 V recommended max) |
|---|---|
| Continuous current | 3.5 A free air |
| Peak current | 7 A |
| Interface | USB, CAN / CAN-FD |
| Feedback | Onboard 12-bit magnetic encoder, quadrature, Hall, SPI (no MOSI) |
| Continuous power | 100 W |
| Mass | 6.8 g bare board |
| Dimensions | 32 x 32 x 7 mm |
Who makes it
MakerODrive Robotics
Based inUnited States
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
37.5%
TW
10%
VN
12.5%
IN
10%
JP
12.5%
KR
12.5%
DE
10%
MX
10%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8504.40.40.00 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Works with
Sources
- https://shop.odriverobotics.com/products/odrive-microprice tiers, SKU, datasheet/CAD/schematic links
- https://docs.odriverobotics.com/v/latest/hardware/micro-datasheet.htmlvoltage, current, mass, dimensions
- https://docs.odriverobotics.com/v/latest/hardware/odrive-comparison.htmlinterfaces, feedback
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
